JODELL
EVS Collaborative Electric Vacuum Gripper
EVS Collaborative Electric Vacuum Gripper
Regular price
$800.00
Sale price
$800.00
Regular price
$800.00
is_show_save: true Save 80000 - 80000 = 0
Unit price
per
Couldn't load pickup availability
Pre-order now, ships when available.
Safe and Reliable Payment Methods.
Payment methods
Rapid Response
Lightweight
Drop Detection
Grip Feedback
Replaceable and Expandable End
Real-time Vacuum Compensation
Smart Control
IP40 Protection

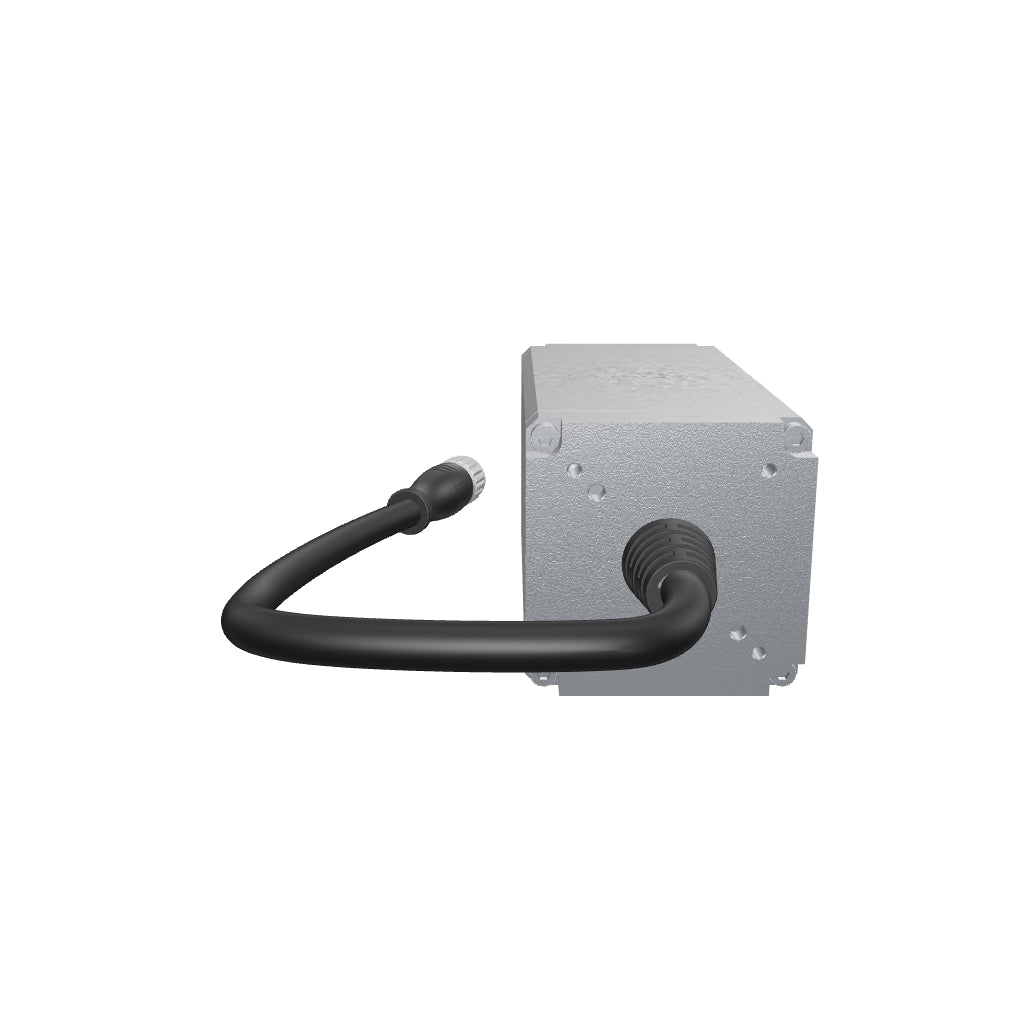

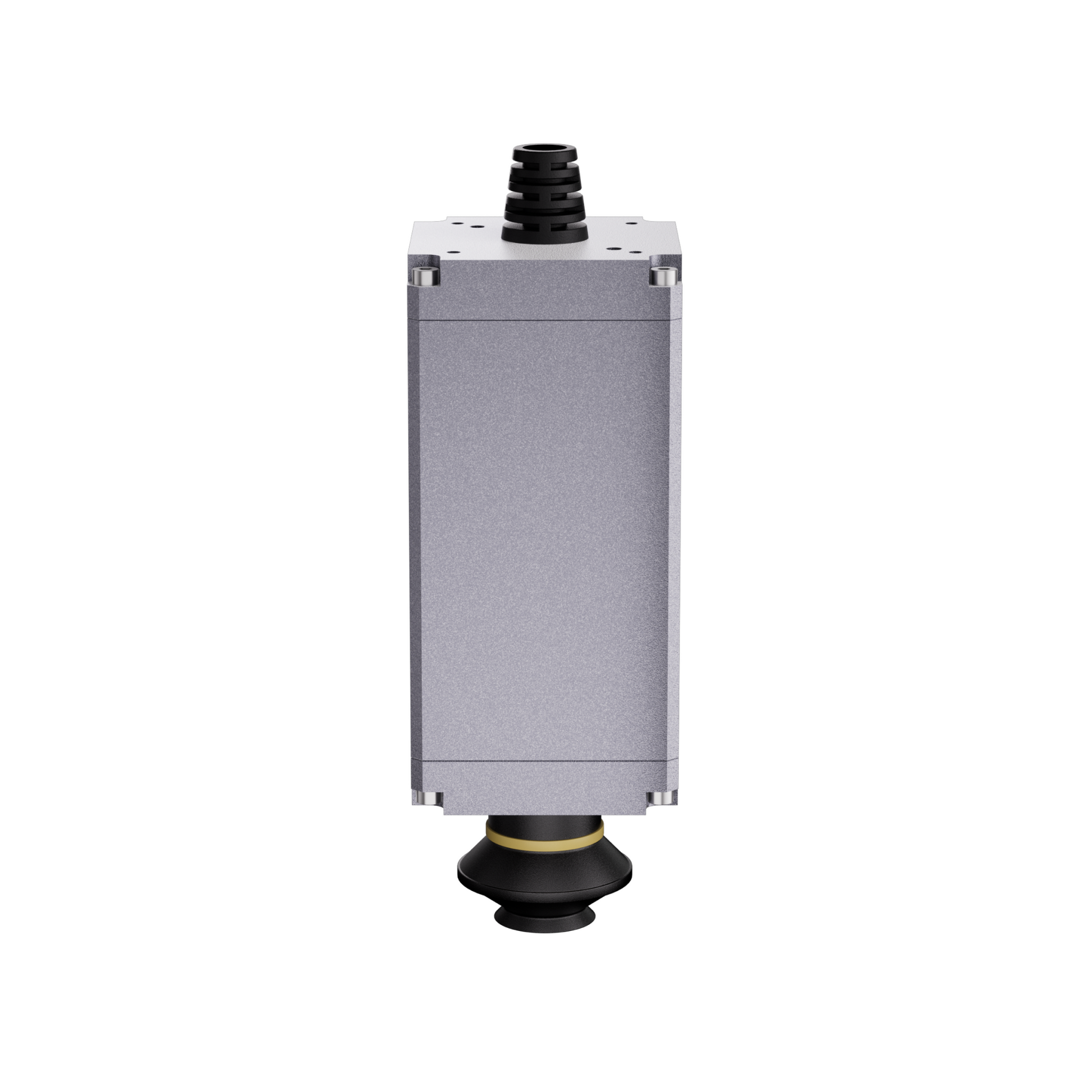

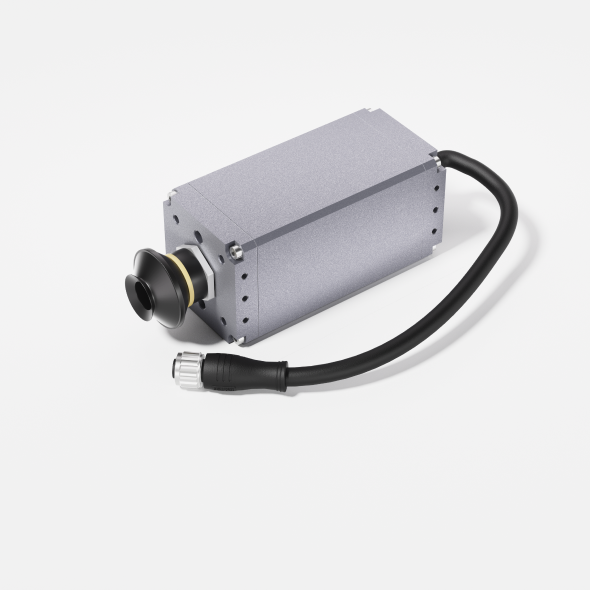

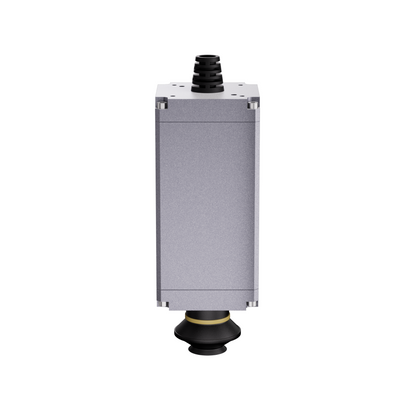

EVS01 Electric Vacuum Cup
The EVS01 features pump-free vacuum technology with an adjustable vacuum level of 10% to 60%,
a 0.2-second adsorption time and a 0.1-second release time, a payload capacity of 1 kg, and a
Modbus RTU protocol, engineered for lightweight automation.
Electric Vacuum Gripper
|
Product
|
|
|
Product Name
|
EVS01 |
|
Product Type
|
Electric Vacuum Gripper
|
|
Vacuum degree
|
10%-60%
|
|
Maximum flow rate
|
2.5 L/min
|
|
Minimum adsorption time
|
0.2 s
|
|
Minimum release time
|
0.1 s
|
|
Maximum recommended load
|
1 Kg
|
|
Weight
|
0.3 kg
|
|
Rated Voltage
|
DC 24±10% V
|
|
Maximum Current
|
0.13 A
|
|
Peak Current
|
0.3 A
|
|
Working environment
|
0~40℃, <85% RH
|
|
Running noise
|
＜70 dB
|
|
IP Protection level
|
IP40
|
|
Communication Protocol
|
Modbus RTU(RS485)
Digital I/O
|
*Note：Vacuum Suction Cup Not Included

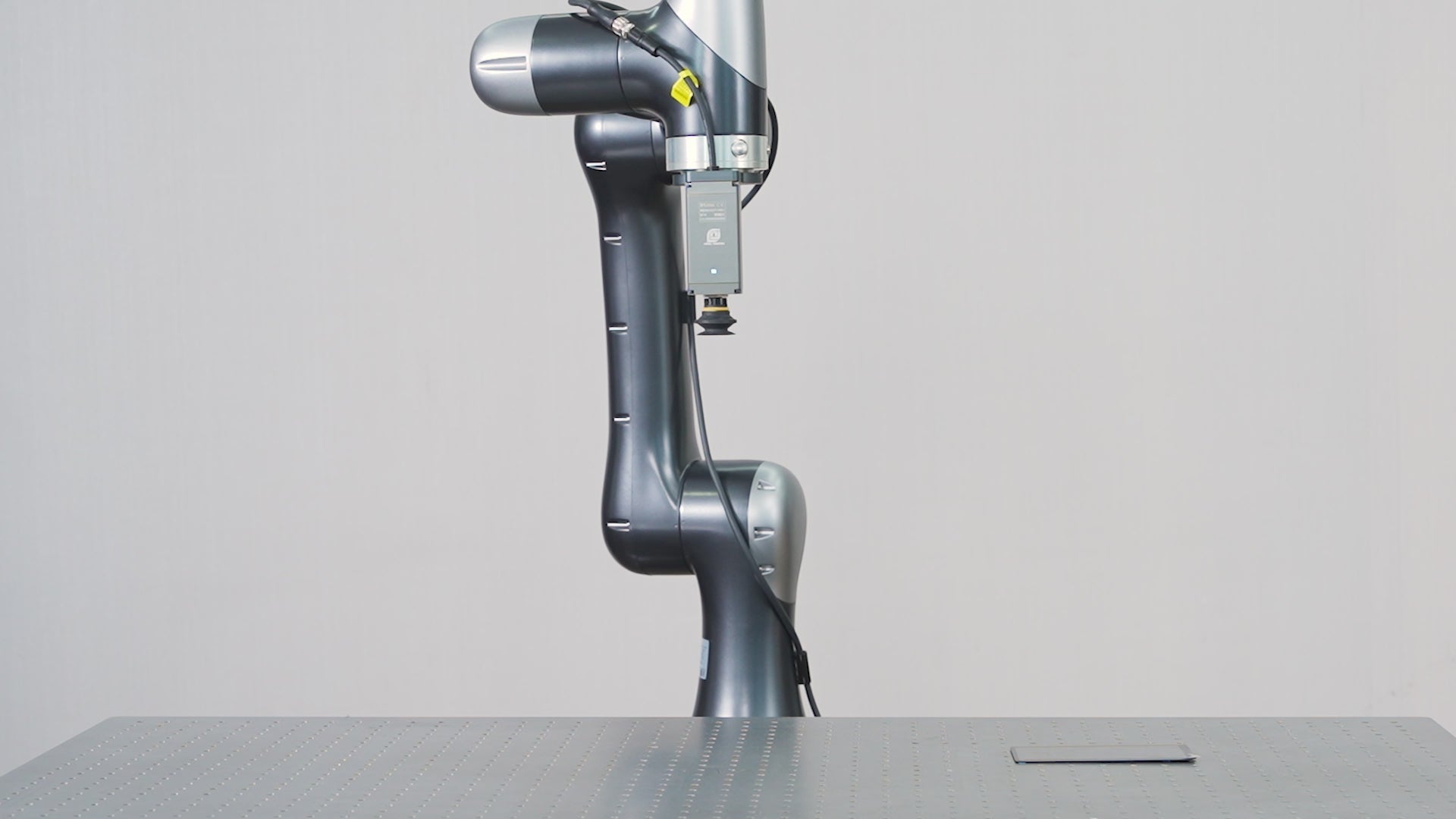

The vacuum suction cup shown in the demonstration is for reference only and is NOT included with the EVS01. Customers must select and purchase compatible suction cups separately based on workpiece characteristics.
