    Revopoint-Robot

    Revo Measure – Professional 3D Measurement and GD&T Software

    Revo Measure – Professional 3D Measurement and GD&T Software


    Regular price $499.00
    Sale price $499.00 Regular price $549.00 is_show_save: true Save 54900 - 49900 = 5000 Save $50.00
    SET: 1-Year License

    ꔷ Accurate Dimension Measurement
    ꔷ GD&T Analysis
    ꔷ Model Deviation Analysis
    ꔷ Import Multiple Formats: PLY, OBJ, STL, and PTS etc
    ꔷ Measurement Report Export
    ꔷ User-friendly Interface
    ꔷ Texture Mapping Visualization

    Start Your 15-Day Free Trial ➡

    Software is non-refundable, fast digital delivery via email.

    Full shipping policy >

    Safe and Reliable Payment Methods.

    Payment methods
      American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa JCB Custom Payment
    View full details

    Overview

    • Accurate Dimension
      Measurement
    • GD&T Analysis
    • Model
      Deviation Analysis
    • Section Creation
      and Measurement
    • Seamless Integration with Revo Scan
    • Measurement
      Report Export
    • User-friendly
      Interface
    • Texture Mapping
      Visualization
    • Cross-Section
      Measurement

    Powerful Tools
    for Accurate Measurement

    Revo Measure is professional 3D metrology software that evaluates shape, dimensions, and quality by comparing point cloud or mesh data to CAD models or drawings. Seamless one-click integration with Revo Scan ensures a smooth and efficient quality control workflow.

    *Supported Languages: English, Chinese, Traditional Chinese, French, German, Italian, Spanish, Japanese, Korean, Russian, Portuguese, Turkish.

    PTB Certification: Verified Accuracy You Can Trust

    The measurement algorithms in Revo Measure have undergone comprehensive evaluation by PTB (Physikalisch-Technische Bundesanstalt), Germany’s Federal Institute of Metrology. This certification confirms that Revo Measure meets internationally recognized standards for precision and reliability.

    Accurate Dimension Measurement

    Accurately extract key parameters, such as dimensions, angles, and volume, through high-precision measurement of point clouds and meshes.

    GD&T Analysis

    Perform design verification and ensure assembly accuracy with comprehensive Geometric Dimensioning and Tolerancing (GD&T) tools for evaluating form and geometric tolerances.

    Intelligent Deviation Analysis

    Quickly identify machining deviations or assembly issues using detailed color maps that highlight overall or localized errors. Supports importing CAD models for rapid comparison and deviation analysis between scanned and CAD models.

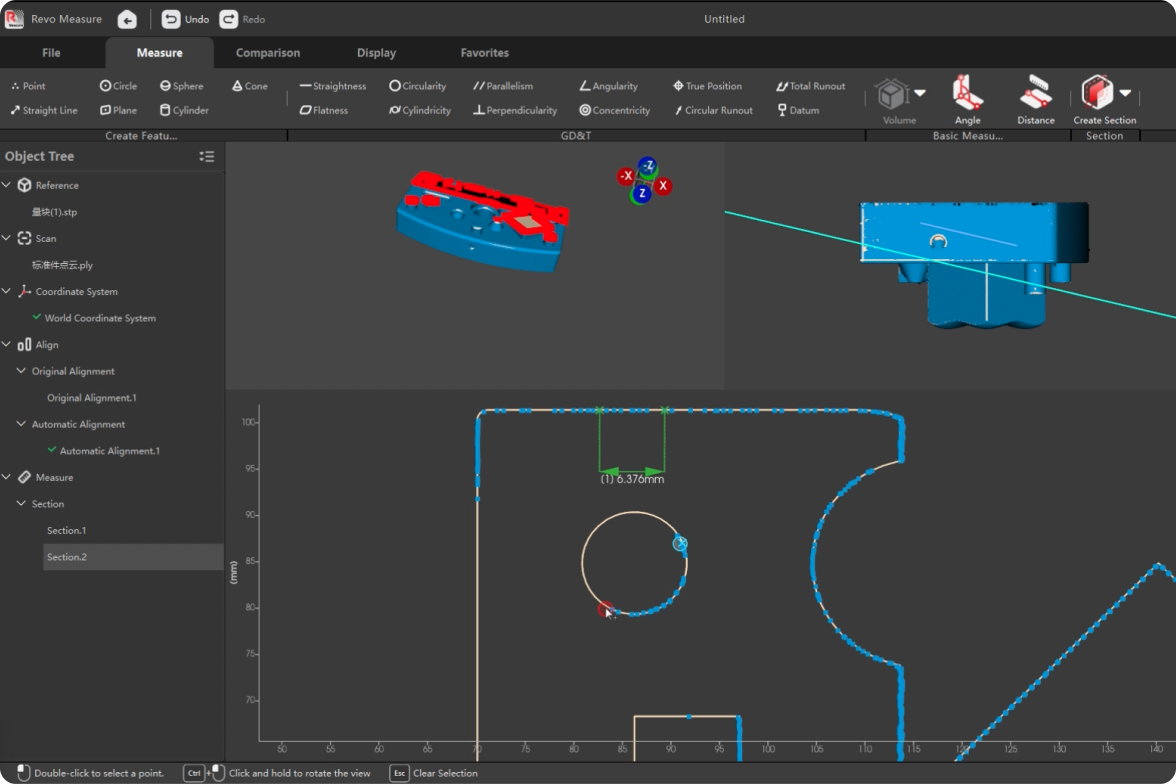

    Cross-Section Measurement

    Create cross-sections interactively and extract key dimensions and angles with precision. Ideal for analyzing complex internal structures.

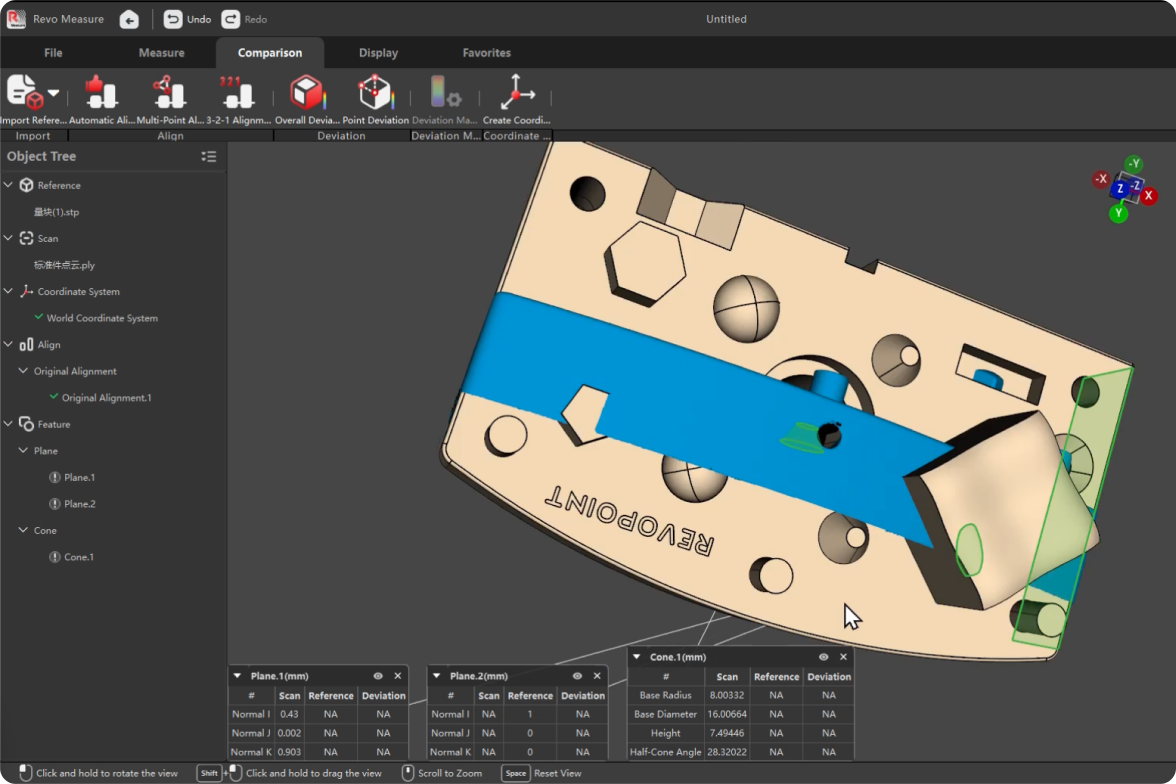

    3-2-1 Alignment

    Align scan data to CAD models with high precision using seven plane-axis-point sequence combinations. Delivers stable, reliable results for complex parts and conical or cylindrical components.

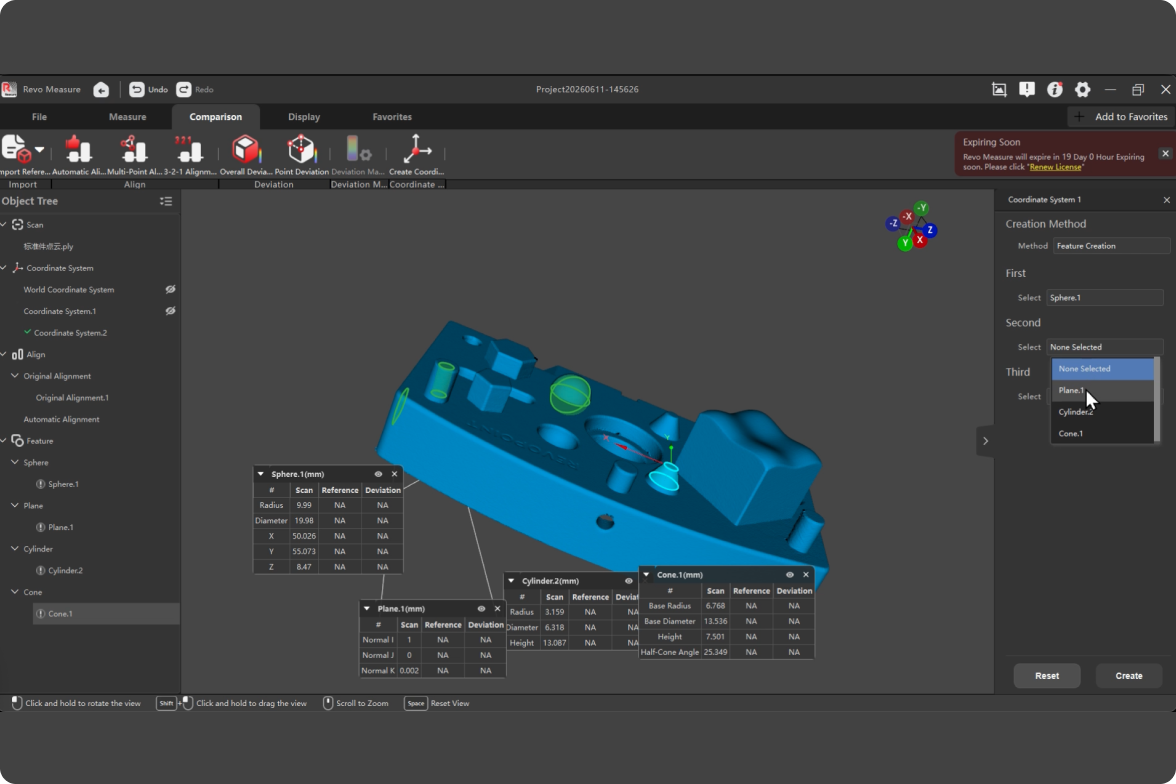

    Flexible Coordinate System Creation

    Define origins and axes using numerical input, feature selection, or translation/rotation to unify measurement references across all tasks.

    Support for Multiple Data Formats

    Works seamlessly with 3D scanners and supports importing CAD models, point clouds, and mesh files in major formats like STP, PLY, OBJ, STL, and PTS, ensuring broad compatibility.

    Multi-Format CAD Compatibility

    Support import CAD models in native and industry-neutral formats directly for alignment, comparison, and measurement — no file conversion required.

    Measurement Export Reports

    Export standardized PDF or JSON reports featuring measurement data, deviation analysis graphs, and color maps for easy presentation and record-keeping.

    Texture Mapping Visualization

    Enhance measurement accuracy and presentations with color-mapping data captured during the scan, making it easier to interpret and visualize details.

    Compatible with Revo Scan Software

    Seamlessly import point clouds and meshes created in all Revopoint scanning software into Revo Measure for an integrated workflow.

    SDK Based Customization (Coming Soon)

    Meet personalized measurement and analysis needs by creating custom software modules, algorithms, or functions within the SDK and integrating them into Revo Measure as plugins.

    Key Features

    Features
    Revo Measure
    Revo Measure Basic
    Supported Import File Formats
    Point Cloud: *.ply *.pts *.xyz *.csv *.asc *.txt
    √
    √
    Mesh: *.ply *.stl *.obj *.3mf
    √
    √
    CAD: *.stp *.step *.igs *.iges *.ipt *.iam *.catpart *.catproduct *.sldasm *.sldprt *.asm *.par *.psm *.x_b *.x_t *.jt *.sat *.sab *.3dxml *.model *.prc *.ifc *.vda etc.
    √
    ✗
    Supported Export File Formats
    *.pdf
    √
    ✗
    *.json (supports secondary development)
    √
    ✗
    *.CSV
    √
    ✗
    CAD and Scan Model Alignment
    Automatic Alignment
    √
    √
    Manual Alignment - N-Point Alignment
    √
    √
    3-2-1 Alignment
    √
    ✗
    RPS Alignment
    √
    ✗
    Manual Alignment
    √
    ✗
    Local Alignment
    √
    ✗
    Align to Coordinate System
    √
    ✗
    Datum Alignment
    √
    ✗
    Supported Features
    Point Feature
    √
    √
    Line Feature
    √
    √
    Plane Feature
    √
    √
    Circle Feature
    √
    √
    Cylinder Feature
    √
    √
    Sphere Feature
    √
    √
    Cone Feature
    √
    √
    Slot
    √
    ✗
    Creation Methods
    Smart Fit Creation
    √
    √
    Point Selection Fit
    √
    √
    Input Coordinate Creation
    √
    √
    Create from Auxiliary Objects
    √
    √
    Create from Reference Mesh
    √
    √
    Create from CAD
    √
    ✗
    Create Datum (23 in total)
    √
    √
    GD&T
    Straightness
    √
    ✗
    Flatness
    √
    ✗
    Roundness
    √
    ✗
    Cylindricity
    √
    ✗
    Concentricity
    √
    ✗
    Position
    √
    ✗
    Parallelism
    √
    ✗
    Perpendicularity
    √
    ✗
    Angularity
    √
    ✗
    Circular Runout
    √
    ✗
    Total Runout
    √
    ✗
    Distance Measurement
    Point to Point
    √
    √
    Point to Line
    √
    √
    Line to Line
    √
    √
    Line to Plane
    √
    √
    Plane to Plane
    √
    √
    Angle Measurement
    Line to Line
    √
    √
    Line to Plane
    √
    √
    Plane to Plane
    √
    √
    Volume Measurement
    Overall Model Volume
    √
    √
    Deviation Analysis
    Overall Deviation
    √
    √
    Local Deviation
    √
    ✗
    Point Deviation
    √
    √
    Mesh Rendering
    Wireframe Rendering
    √
    √
    Mesh Rendering
    √
    √
    Vertex Rendering
    √
    √
    Texture Rendering
    √
    √
    CAD Rendering
    Solid Rendering
    √
    ✗
    Wireframe Rendering
    √
    ✗
    Solid Wireframe Rendering
    √
    ✗
    View
    Best Fit Zoom
    √
    √
    Initial Pose
    √
    √
    Simplified Label
    √
    ✗
    One-Click Template Measurement
    √
    ✗
    Deviation Map Settings
    √
    √
    Add Frequently Used Functions
    √
    √
    Set Model Display Color
    √
    √
    Reference Plane Selection Method
    Coordinate System as Reference Plane
    √
    ✗
    Feature as Reference Plane
    √
    ✗
    Cross-Section Selection Method
    Vertical
    √
    ✗
    Parallel
    √
    ✗
    Line
    √
    ✗
    Perpendicular Line
    √
    ✗
    Parallel Line
    √
    ✗
    Create Along Axis
    √
    ✗
    Cross-Section Measurement
    Point-Point
    √
    ✗
    Point-Line
    √
    ✗
    Line-Line
    √
    ✗
    Point-Circle
    √
    ✗
    Circle-Line
    √
    ✗
    Circle-Circle
    √
    ✗
    Angle
    √
    ✗
    Arc R
    √
    ✗
    Corner R
    √
    ✗
    Diameter
    √
    ✗
    Circumference
    √
    ✗
    Thickness
    √
    ✗
    Reference Cross-Section Comparison
    Point-Point
    √
    ✗
    Point-Line
    √
    ✗
    Line-Line
    √
    ✗
    Angle
    √
    ✗
    Create Coordinate System
    Numeric Creation
    √
    √
    Feature Creation
    √
    √
    Translation and Rotation
    √
    √
    Format Version Suffixe(s)
    3MF 1.2.3 3MF
    Autodesk Inventor Up to 2026 IPT, IAM
    CATIA V5 Up to V5-6R2026 CATPart, CATProduct
    IGES 5.1, 5.2, 5.3 IGS, IGES
    Parasolid Up to 38.1 X_B, X_T
    Solid Edge 1 to 20, ST1 to ST10, 2019 to 2026 ASM, PAR, PSM
    SolidWorks From 97 up to 2026 SLDASM, SLDPRT
    STEP AP 203 Ed1, Ed2 - AP 214 - AP 242 Ed1, Ed2, Ed3 STP, STEP
    STEP AP 203 Ed2, AP 214 Ed1, AP 242 Ed1, Ed2, Ed3 STPZ
    NX - Unigraphics UG11 to UG18, UG NX, NX5 to NX12, NX1847 to NX2512 PRT*
    Creo - Pro/E Pro/Engineer 19.0 to Creo 12.4.0.0 ASM*
    JT Up to v10.10 JT
    NX - Unigraphics UG11 to UG18, UG NX, NX5 to NX12, NX1847 to NX2512 PRT
    ACIS From 1.3 (103) to 35.0 (3500) SAT
    ACIS From 1.3 (103) to 35.0 (3500) SAB
    CATIA V6 / 3DExperience 3DXML 4.3 3DXML
    CATIA V4 Up to 4.2.5 MODEL
    PRC All Versions PRC
    IFC IFC2 up to 2.3.0.1, IFC4 up to 4.3 IFC
    VDA-FS Version 1.0 and 2.0 VDA

    From Scanning to 3D Measurement

    Step 1: Capture and Import to Revo Measure

    Step 2: Perform CAD Model Comparison and Error Analysis

    Step 3: Export the Report
