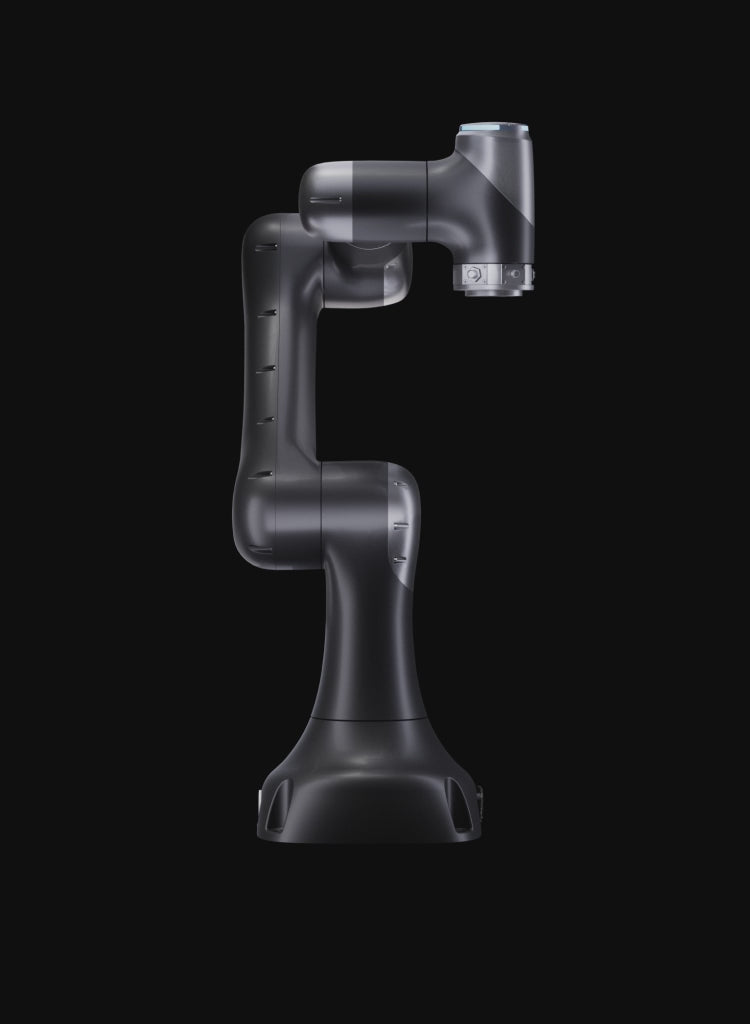

Overview

Agile Motion

6-axis, ±360° Movement

Remarkable Repeatability

±0.03 mm

Payload

5 kg

Working Radius

919 mm

919 mm

IP 54

Easy to Use

Includes Teach Pendant

Safety in Every Move

Work safely alongside Vbots, whose advanced torque sensors are capable of detecting even slight forces for rapid collision prevention. It’s 5 times more responsive than standard systems, with over 21 TÜV-certified safety features, redundant monitoring, and a secure braking system.

6-Axis Torque Sensing

High-Precision Torque Detection

Equipped with advanced integrated 6-axis torque sensors, the Vbot 9 provides ultra-sensitive force feedback with rapid response times. This enables real-time, dynamic multi-axis force measurement and exact torque control, empowering high-accuracy, complex manipulation tasks across demanding industrial and research applications.

Smooth Drag-to-Teach Operation

The intuitive drag-to-teach function simplifies path planning with natural human-robot interaction, ensuring quick setup and safe, seamless operation.

Fine Motor Control

Vbot robots achieve a repeatability of ±0.03 mm, allowing them to handle challenging tasks such as precision assembly and testing.

Superior Performance

The six-axis robotic arm's high-dynamic joint force control increases its collaborative efficiency by over three times. With a working radius of 919 mm, it can fully adapt to diverse work applications.

Engineered for Endurance

The Vbot 9 series offers exceptional reliability with an industry-leading 80,000-hour mean time between failures. Rated for IP54 protection for durable operation in complex industrial environments.

xPad Teach Pendant

The xPad is a lightweight, user-friendly teach pendant that streamlines robot programming and control. Its high-resolution 10.1" touchscreen and intuitive interface enable fast setup and interaction with Vbot series robots. With its quick-start functionality and ergonomic design, the xPad empowers operators to easily and precisely teach and deploy automation tasks.

From Box to Bot in No Time

Offering quick installation and programming, even for beginners. Intuitively teach the bot what to do by moving the Vbot’s arm to teach it how to complete even complex tasks. Its intuitive graphical user interface can be quickly mastered, and extensive SDK interfaces support rapid development of specialized applications.

Built for Customization

Revopoint provides a versatile one-stop solution for human-machine collaboration, supporting fast customization through real-time development interfaces. Support for Modbus, PROFINET, CC-Link, and RS485 ensures easy integration, while Metro Hub's enables quick offline simulation and solution design.

Great Connectivity

Vbot 9C's Extra Feature

Control Cab

The Control Cab is a high-performance external controller for the Vbot 9C, providing powerful control in a compact design that can be mounted either on the floor or on a backboard. With dual USB 3.0 ports, an Ethernet port, digital I/O, and 24V power output, it enables seamless connectivity and flexible deployment, even in the tightest spaces.

One Ecosystem, Endless Possibilities

Empower human-machine collaboration with a versatile, all-in-one solution. With powerful tools like RCI, SDK, and RevoRobot, we deliver plug-and-play flexibility for every industry need.From force control to laser welding, our robust ecosystem enables seamless integration and secondary development, making us the trusted partner for equipment manufacturers and integrators alike.

Automation Solutions

  • 3D Scanning

    Speed up your quality control processes with automated 3D scans, helping to inspect for defects, dimensional deviations, or surface irregularities, ensuring fast, accurate, and consistent workpiece checks every time.

  • Metal Fabrication

    Significantly increasing production efficiency while reducing costs using SR robots for non-stop casting, loading & unloading, chamfering, welding, deburring, and other processes under harsh working conditions with heavy dust, heavy moisture, and high temperature.

  • Industrial Manufacturing

    Boost manufacturing productivity with Vbot's ±0.03 mm high reliability and 24/7 operational continuity for CNC, injection molding, stamping operations, and automotive assembly. Its IP54 protection makes it suitable for industrial environments.

  • Healthcare

    Vbot streamlines laboratory sample processing and auxiliary operations. Operating at speeds of up to 2s, it quickly executes batch sample classification and other tasks, maximizing efficiency.

  • Logistics & Warehousing

    Transform efficiency and accuracy in supply chain operations with Visuabot's robotic automation. Use its adaptive systems for precision order picking, inventory synchronization, and high-speed palletizing.

  • Energy & Semiconductors

    Fully automates repetitive tasks requiring high accuracy for battery production and wafer processing.

What's in the Box

  • Robot Arm Vbot 9

    • Vbot 9 Robot
    • M8 Circular Connector
    • Collaborative AGV Power Cord
    • Enhanced Power Cable
    • USB Flash Disk
    • Emergency Stop Button Box
    • Power Adapter
    • xPad Teach Pendant

  • Robot Arm Vbot 9C

    • Vbot 9C Robot
    • M8 Circular Connector
    • 220V Power Cord - 10A
    • SR-MCC Trunks
    • USB Flash Disk
    • Emergency Stop Button Box
    • xPad Teach Pendant
    • Control Cab

Top End Effectors

  • Surface Pro Industrial 3D Depth Cameras: High Definition, Fast Capture

    Surface Pro Industrial 3D Depth Cameras: High Definition, Fast Capture

    $1,500.00
  • PEGA Compact Collaborative Electric Gripper

    PEGA Compact Collaborative Electric Gripper

    $800.00
  • EVS Collaborative Electric Vacuum Gripper

    EVS Collaborative Electric Vacuum Gripper

    $800.00
  • RG Collaborative Parallel Electric Gripper

    RG Collaborative Parallel Electric Gripper

    $1,200.00
Hassle-free
Logistics
2-year
Warranty
24/7
Customer Service
No-hassle Returns
& Exchanges
Safe & Secure
Checkout

Technical Specifications

Product
Product Name
Maximum Payload
Maximum Reach
Weight
Number of axes
Repeatability
Maximum Speed at Tool End
Protection level
Operating Temperature
Storage Temperature
Maximum Humidity
Range of Motion
Axis 1
Axis 2
Axis 3
Axis 4
Axis 5
Axis 6
Maximum Speed
Axis 1
Axis 2
Axis 3
Axis 4
Axis 5
Axis 6
Noise level
Control Cab
Product Name
Noise
IP rating
Electrical Connection
Power Supply
Maximum Output Power
Short-circuit Current
Operating Temperature
Storage Temperature
Maximum relative operating/storage humidity
Physical Properties
Dimensions
Weight
Color
Vbot 9 Vbot 9C Vbot 14C
5 kg
5 kg
12 kg
919 mm
919 mm
1434 mm
17.5 kg
16.5 kg
Approx. 41 kg
6
6
6
±0.03 mm
±0.03 mm
±0.03 mm
≤2 m/s
≤2.0 m/s
≤3.0 m/s
IP54
IP54
IP67
0°C ~ +50°C
0°C ~ +50°C
0°C ~ +50°C
-10°C ~ +55°C
-10°C ~ +55°C
-10°C ~ +55°C
0%~93%, non-condensing, non-frost
0%~93%, non-condensing, non-frost
93%, non-condensing, non-frosting
±360°
±135°
-170°~ +140°
±360°
±360°
±360°
±360°
-160°~+150°
-170°~+140°
±360°
±360°
±360°
±360°
±360°
±360°
±360°
±360°
±360°
180°/s
180°/s
180°/s
180°/s
180°/s
180°/s
180°/s
180°/s
180°/s
180°/s
180°/s
180°/s
120°/s
120°/s
180°/s
234°/s
240°/s
240°/s
≤70dB(A)
≤70dB(A)
≤70dB(A)
Control Cab
Control Cab
≤70dB(A)
≤70dB(A)
IP54
IP54
/
Single phase, 90 VAC to 264 VAC, 47 Hz to 63Hz
2kW
40A
Single phase, 90 VAC to 264 VAC, 47 Hz to 63Hz
2kW
40A
0℃~+45℃
0℃~+45℃
-25℃~+55℃
-25℃~+55℃
≤95%, non-condensing, non-frost
≤95%, non-condensing, non-frost
450 mmx250 mmx350 mm(LxWxH)
About 15 kg
Grey & white
450 mmx250 mmx350 mm(LxWxH)
About 15 kg
Grey & white
