Overview

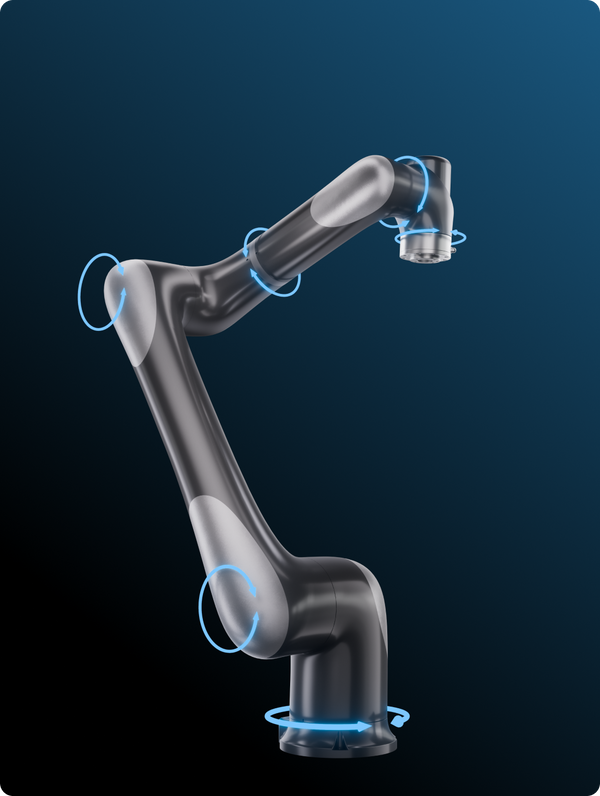

Agile Motion

6-axis, ±360° Movement

Remarkable

Repeatability

±0.03 mm

High Payload

12 kg

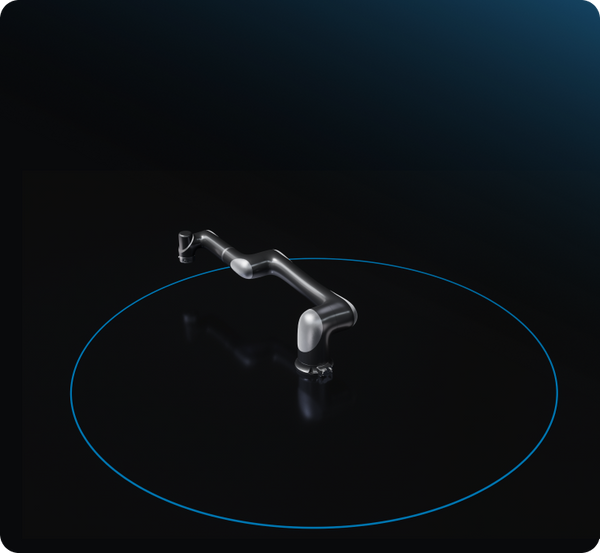

Working Radius

1434 mm

IP Rating

IP 67

Easy to Use

Includes Teach Pendant

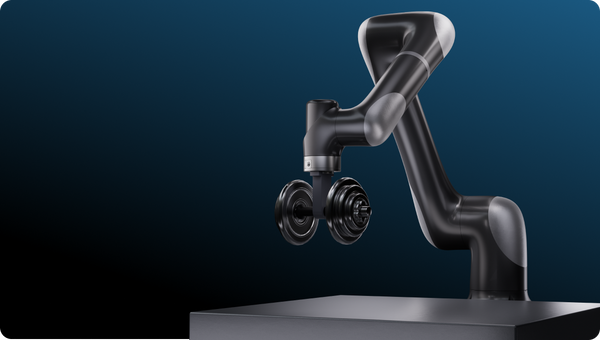

Vbot 14C Robotic Arm

Strength Meets Smart Automation

The Vbot 14C robots integrate a force-position hybrid control framework with xCore, a high-performance in-house control system. With an IP67-rated body and an independent control cabinet providing extensive I/O and flexibility, Vbot 14C is built for demanding applications.

Accelerated Productivity

Supercharge industrial productivity and achieve ROI in under 6 months with cutting-edge motion control. Powered by Optimotion (vibration suppressing system) & TrueMotion (velocity-independent path planning), achieve trajectory accuracy under 1 mm and repeatability within ±0.03 mm.

Agile Motion

Vbot 14’s OptiMotion technology delivers high-speed, precise performance with vibration suppression and dynamic modeling. Unlike single-axis methods, it minimizes vibration in any posture, reducing wait times and enhancing cycle efficiency.

Cutting end-effector jitter by over 80% in welding for stable, high-quality results. In applications like photovoltaic panel insertion and PCB tray handling, fast cycle times, up to 8,500 pieces per hour, support efficient, high-volume production.

True Motion

Vbot 14’s TrueMotion technology ensures high-precision operation with velocity-independent path planning, so the taught path matches actual movement. Advanced rigid-flex error compensation maintains accuracy across the entire workspace. Paired with OptiMotion, it delivers fast and precise motion for tasks like panel insertion, adhesive coating, polishing, material handling, and welding, ensuring consistent, high-quality results in speed-critical applications.

Smart Safety for Smarter Production

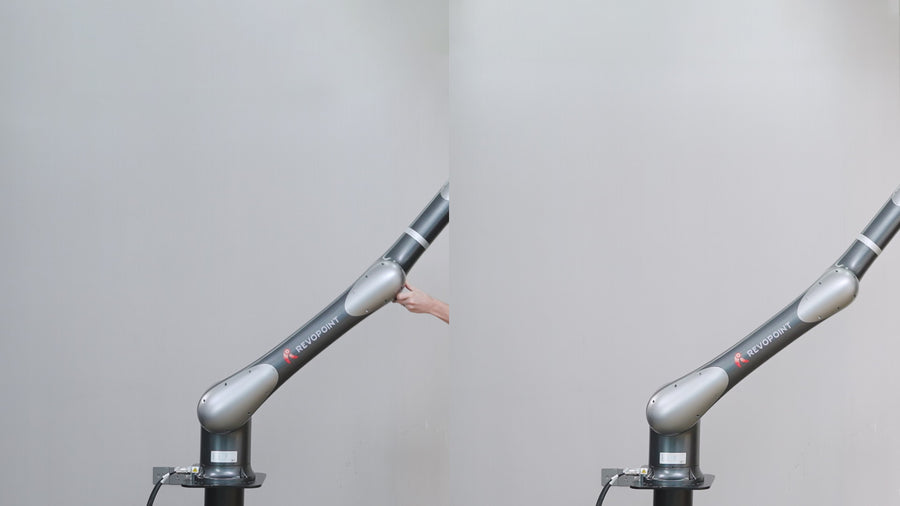

Operate with total confidence in safety with 5x improved anti-collision sensitivity and over 21 TÜV-certified safety features. Vbot’s RSC design and dual-channel monitoring deliver rock-solid reliability, while the suction band-type brake ensures safe, shielded operation. Built for seamless human-machine collaboration and full compliance with international safety standards, it's your perfect partner for high-efficiency, worry-free production.

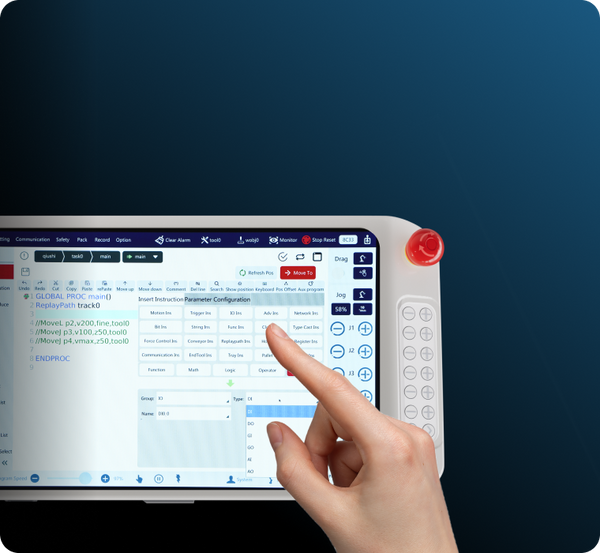

xPad Teach Pendant

The xPad is a lightweight, user-friendly teach pendant that streamlines robot programming and control. Its high-resolution 10.1" touchscreen and intuitive interface enable fast setup and interaction with Vbot series robots. With its quick-start functionality and ergonomic design, the xPad empowers operators to easily and precisely teach and deploy automation tasks.

Easy to Use, Fast to Deploy

Experience effortless setup with 1 Newton drag-to-teach programming and a user-friendly graphical interface. Flexible production line integration reduces costs by 30%, eliminating the need for professional installation. Fast to deploy, easy to use, maximizing efficiency while minimizing retrofitting expenses.

Built to Endure

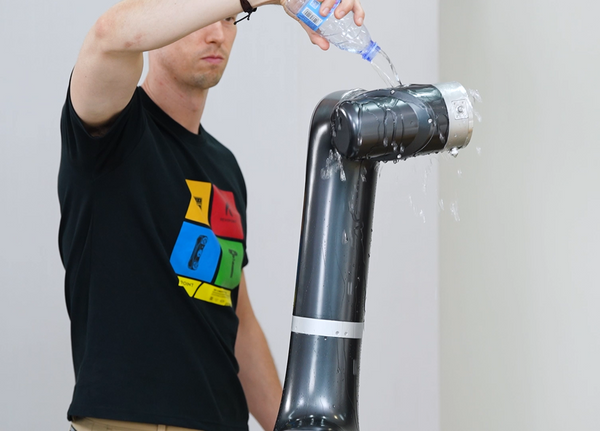

Tackle demanding applications with confidence. Featuring industry-leading IP67 protection and dynamic modeling powered by over 2,000 parameters, our system prevents overload and extends the lifespan of motors and reducers by 30%. Engineered for durability, it is the perfect choice for complex industrial scenarios.

Exclusive to Vbot 14C

Control Cab

The Control Cab is a high-performance external controller for the Vbot 14C, providing powerful control in a compact design that can be mounted either on the floor or on a backboard. With dual USB 3.0 ports, an Ethernet port, digital I/O, and 24V power output, it enables seamless connectivity and flexible deployment, even in the tightest spaces.

One Ecosystem, Endless Possibilities

Empower human-machine collaboration with a versatile, all-in-one solution. With powerful tools like RCI, SDK, and RevoRobot, we deliver plug-and-play flexibility for every industry need. From force control to laser welding, our robust ecosystem enables seamless integration and secondary development, making us the trusted partner for equipment manufacturers and integrators alike.

Automation Solutions

  • 3D Scanning

    Speed up your quality control processes with automated 3D scans, helping to inspect for defects, dimensional deviations, or surface irregularities, ensuring fast, accurate, and consistent workpiece checks every time.

  • Metal Fabrication

    Significantly increasing production efficiency while reducing costs using SR robots for non-stop casting, loading & unloading, chamfering, welding, deburring, and other processes under harsh working conditions with heavy dust, heavy moisture, and high temperature.

  • Industrial Manufacturing

    Boost manufacturing productivity with Vbot's ±0.03 mm high reliability and 24/7 operational continuity for CNC, injection molding, stamping operations, and automotive assembly. Its IP67 protection makes it suitable for industrial environments.

  • Healthcare

    Vbot streamlines laboratory sample processing and auxiliary operations. Operating at speeds of up to 2s, it quickly executes batch sample classification and other tasks, maximizing efficiency.

  • Logistics & Warehousing

    Transform efficiency and accuracy in supply chain operations with Visuabot's robotic automation. Use its adaptive systems for precision order picking, inventory synchronization, and high-speed palletizing.

  • Energy & Semiconductors

    Fully automates repetitive tasks requiring high accuracy for battery production and wafer processing.

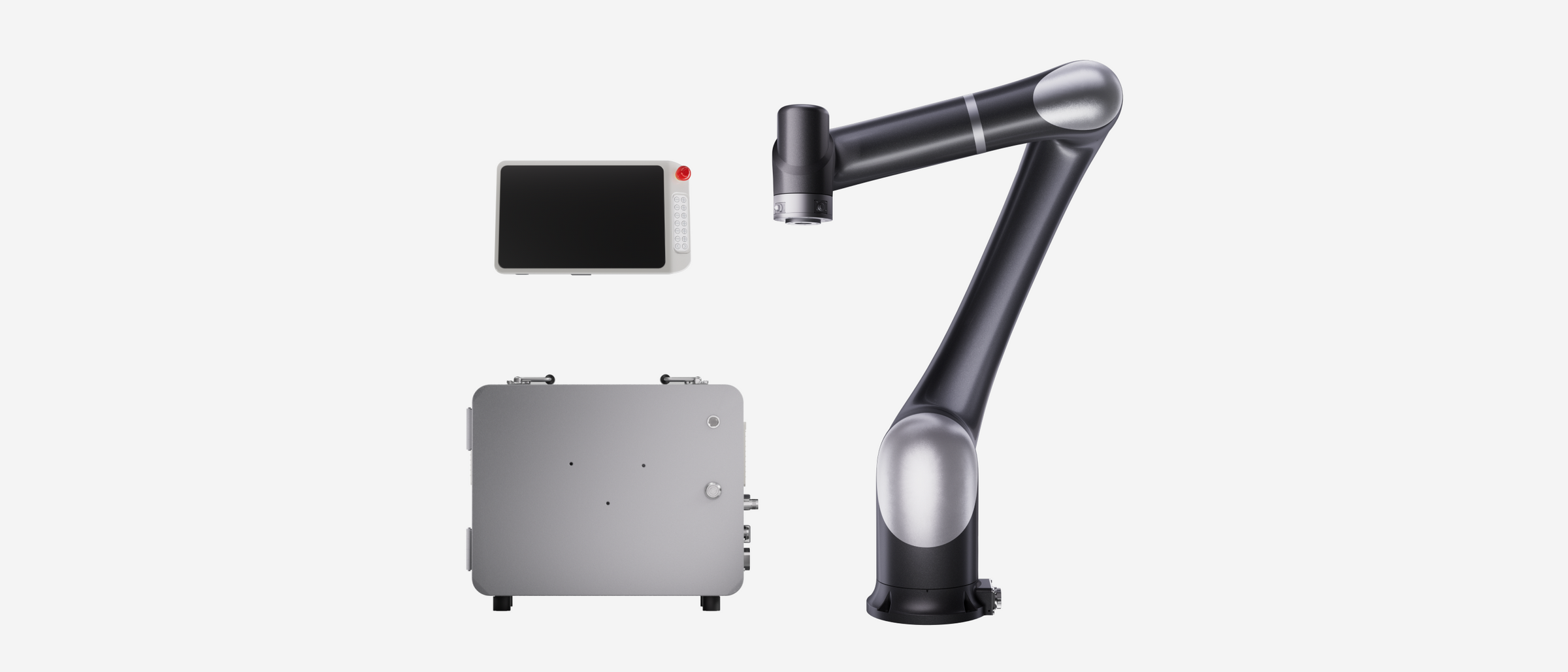

What's in the Box

Robot Arm Vbot 14C

  • Vbot 14C Robot
  • M8 Circular Connector
  • 220V Power Cord - 10A
  • Signal Cord - High Flexibility
  • Power Cord - High Flexibility
  • USB Flash Disk
  • Emergency Stop Button Box
  • xPad Teach Pendant
  • Calibration Block
  • Control Cab

Top End Effectors

  • Surface Pro Industrial 3D Depth Cameras: High Definition, Fast Capture

    Surface Pro Industrial 3D Depth Cameras: High Definition, Fast Capture

    $1,500.00
  • PEGA Compact Collaborative Electric Gripper

    PEGA Compact Collaborative Electric Gripper

    $800.00
  • EVS Collaborative Electric Vacuum Gripper

    EVS Collaborative Electric Vacuum Gripper

    $800.00
  • RG Collaborative Parallel Electric Gripper

    RG Collaborative Parallel Electric Gripper

    $1,200.00
Hassle-free
Logistics
2-year
Warranty
24/7
Customer Service
No-hassle Returns
& Exchanges
Safe & Secure
Checkout

Technical Specifications

Product
Product Name
Maximum Payload
Maximum Reach
Weight
Number of axes
Repeatability
Maximum Speed at Tool End
Protection level
Operating Temperature
Storage Temperature
Maximum Humidity
Range of Motion
Axis 1
Axis 2
Axis 3
Axis 4
Axis 5
Axis 6
Maximum Speed
Axis 1
Axis 2
Axis 3
Axis 4
Axis 5
Axis 6
Noise level
Control Cab
Product Name
Noise
IP rating
Electrical Connection
Power Supply
Maximum Output Power
Short-circuit Current
Operating Temperature
Storage Temperature
Maximum relative operating/storage humidity
Physical Properties
Dimensions
Weight
Color
Vbot 9 Vbot 9C Vbot 14C
5 kg
5 kg
12 kg
919 mm
919 mm
1434 mm
17.5 kg
16.5 kg
Approx. 41 kg
6
6
6
±0.03 mm
±0.03 mm
±0.03 mm
≤2 m/s
≤2.0 m/s
≤3.0 m/s
IP54
IP54
IP67
0°C ~ +50°C
0°C ~ +50°C
0°C ~ +50°C
-10°C ~ +55°C
-10°C ~ +55°C
-10°C ~ +55°C
0%~93%, non-condensing, non-frost
0%~93%, non-condensing, non-frost
93%, non-condensing, non-frosting
±360°
±135°
-170°~ +140°
±360°
±360°
±360°
±360°
-160°~+150°
-170°~+140°
±360°
±360°
±360°
±360°
±360°
±360°
±360°
±360°
±360°
180°/s
180°/s
180°/s
180°/s
180°/s
180°/s
180°/s
180°/s
180°/s
180°/s
180°/s
180°/s
120°/s
120°/s
180°/s
234°/s
240°/s
240°/s
≤70dB(A)
≤70dB(A)
≤70dB(A)
Control Cab
Control Cab
≤70dB(A)
≤70dB(A)
IP54
IP54
/
Single phase, 90 VAC to 264 VAC, 47 Hz to 63Hz
2kW
40A
Single phase, 90 VAC to 264 VAC, 47 Hz to 63Hz
2kW
40A
0℃~+45℃
0℃~+45℃
-25℃~+55℃
-25℃~+55℃
≤95%, non-condensing, non-frost
≤95%, non-condensing, non-frost
450 mmx250 mmx350 mm(LxWxH)
About 15 kg
Grey & white
450 mmx250 mmx350 mm(LxWxH)
About 15 kg
Grey & white
