Surface Pro Industrial 3D Depth Cameras: High Definition, Fast Capture
Surface Pro Industrial 3D Depth Cameras: High Definition, Fast Capture
High-speed Real-time Scanning
High Accuracy
Compact and Portable
High Quality Imaging
Couldn't load pickup availability
Pre-order now, estimated shipping on Aug 31.
Safe and Reliable Payment Methods.
Micron-Level Vision, Macro-Level Impact
Precision: ±0.05 mm
Stereo Full-field Structured Light
Open Source Ease to Use
High-quality Imaging
Industrial Precison, Fast, Light Resistant
±0.05 mm Precision

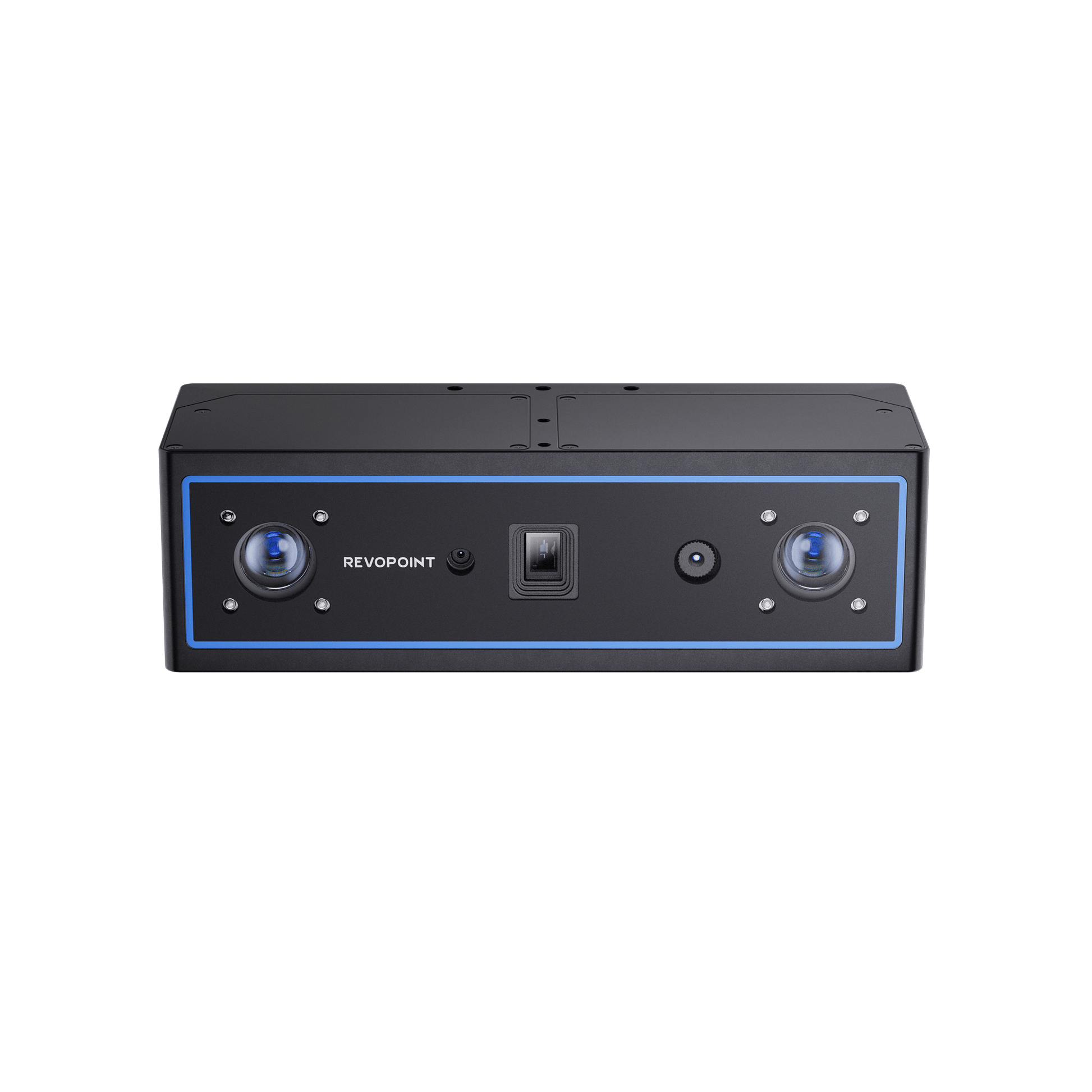

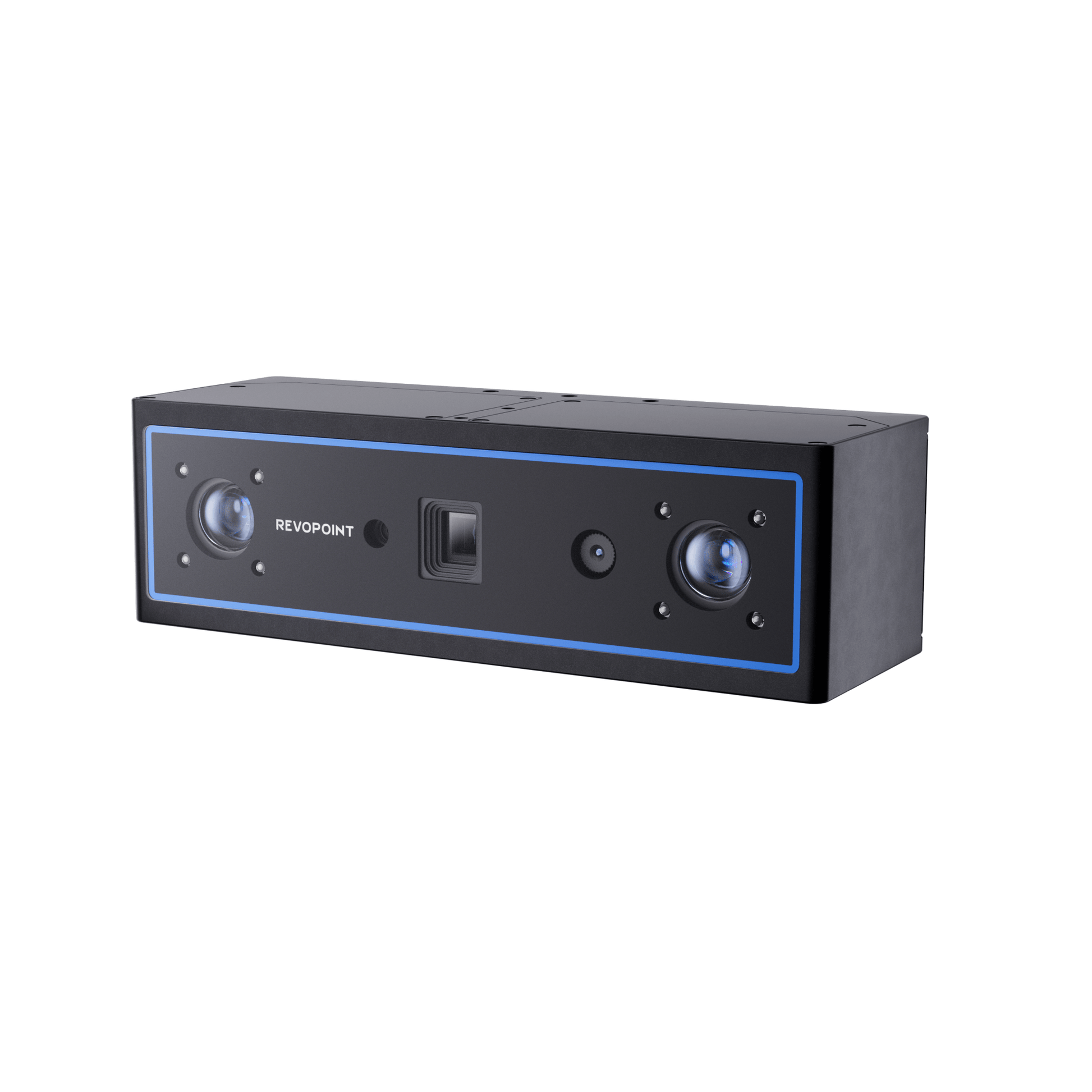

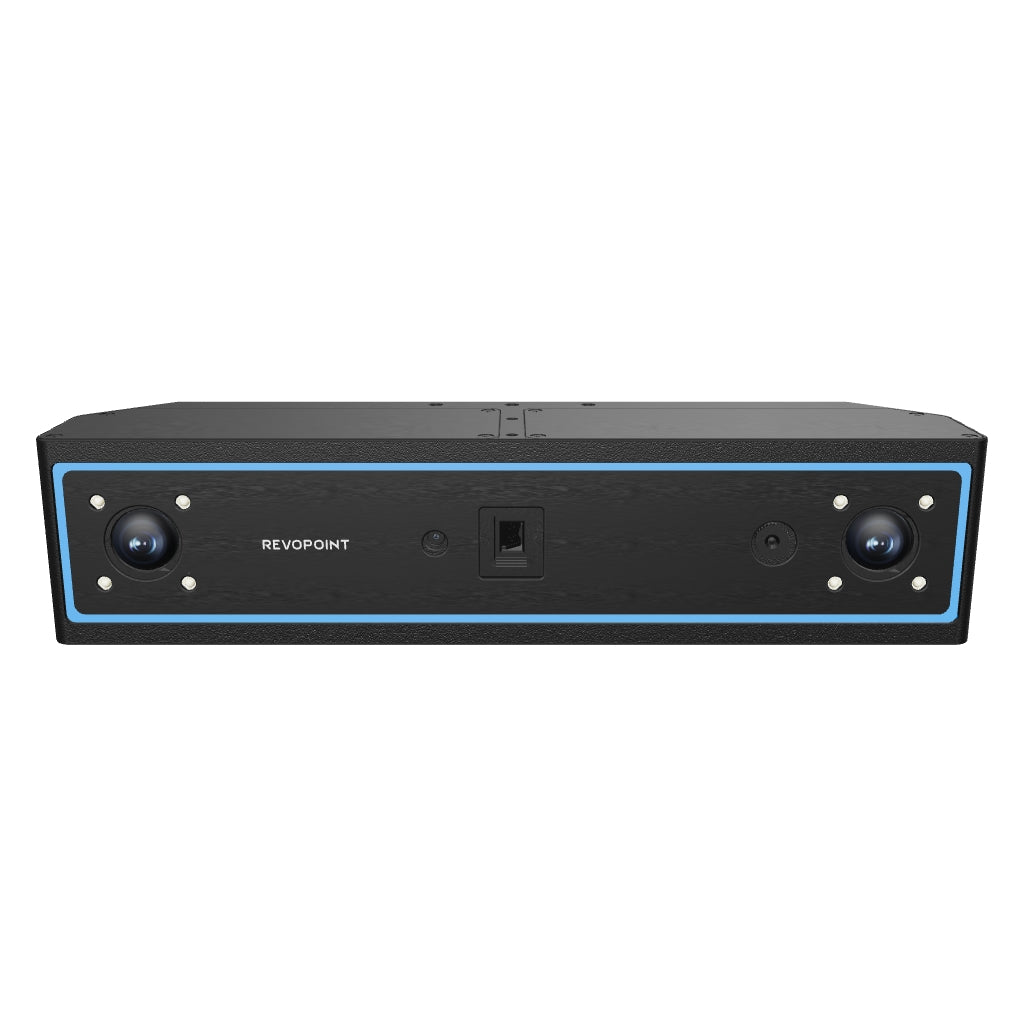

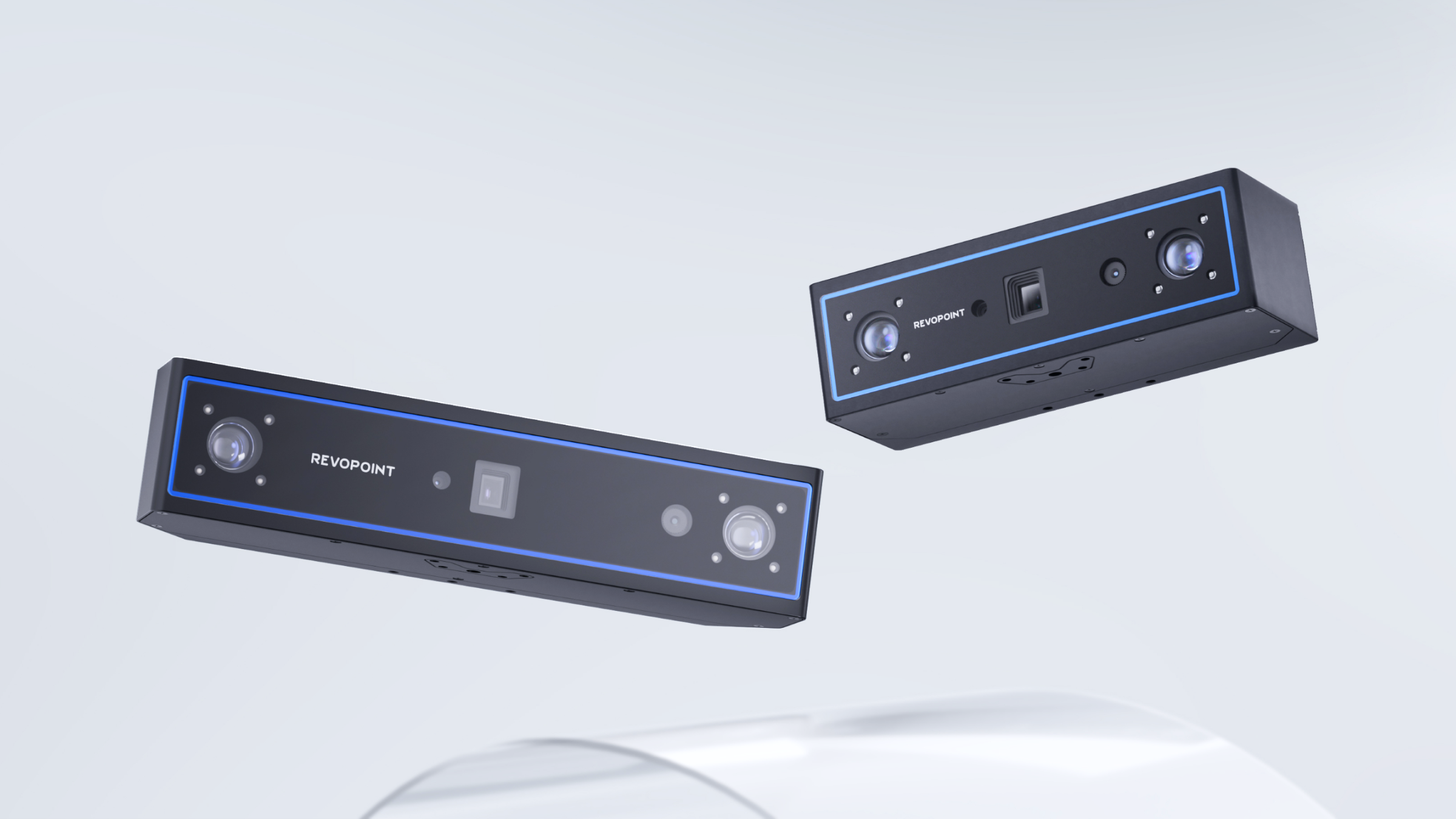

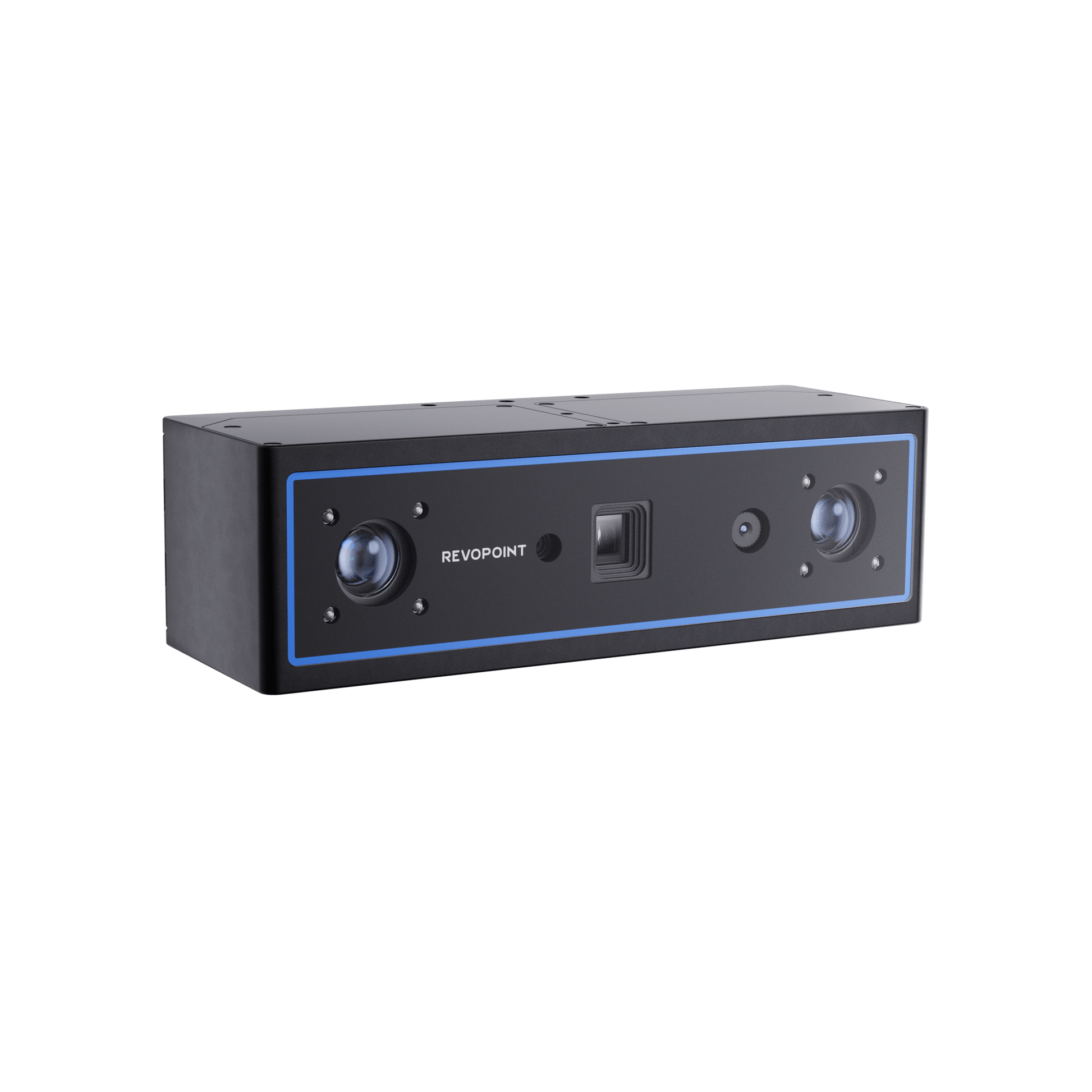

The Surface Pro series is a robust surface-matrix 3D camera designed for industrial measurement and inspection. It offers point accuracy of ±0.05 mm at frame rates of up to 12 fps and has high resistance to ambient light, making it perfect for robot guidance applications.
Wide FOV (H49° × V38°)

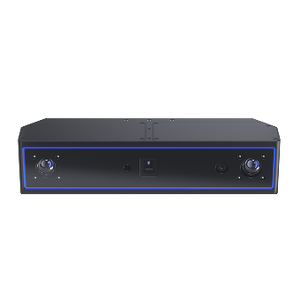

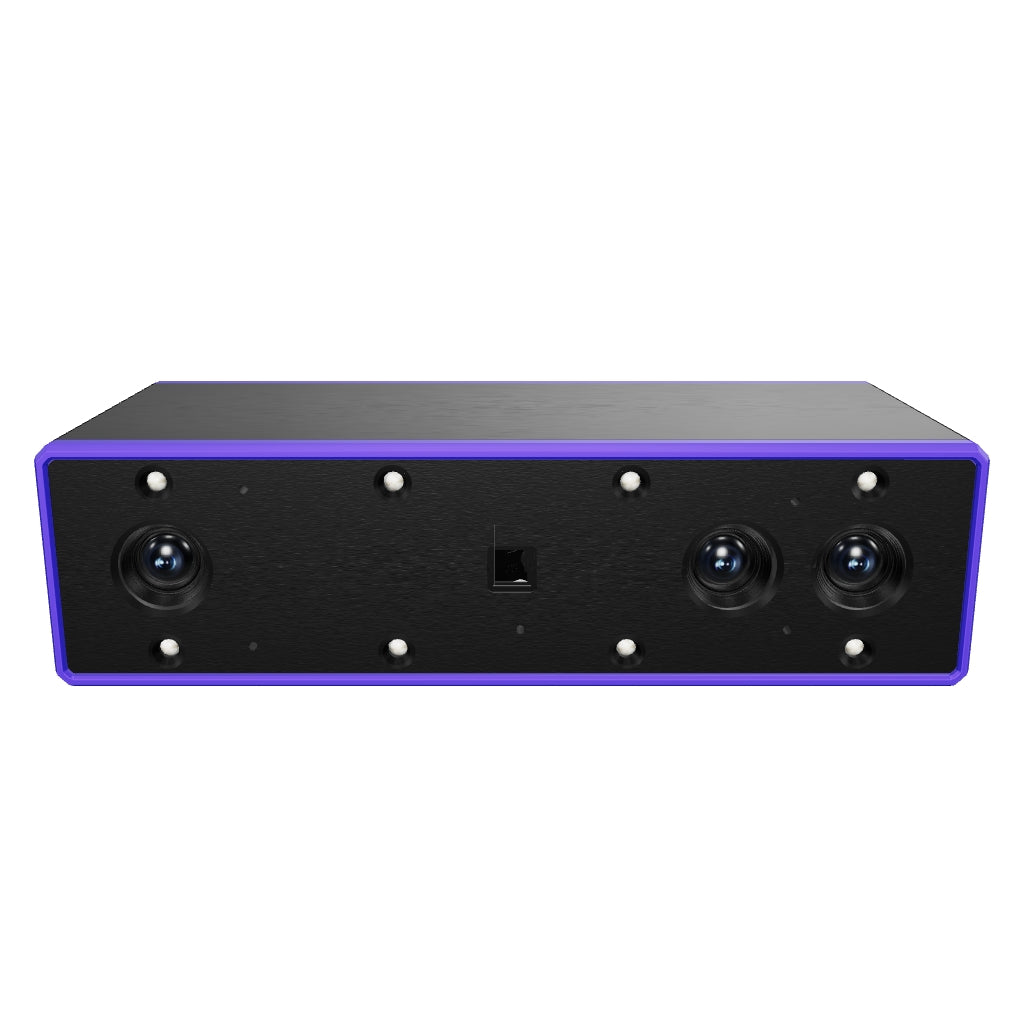

Surface Pro 50
Surface Pro 100

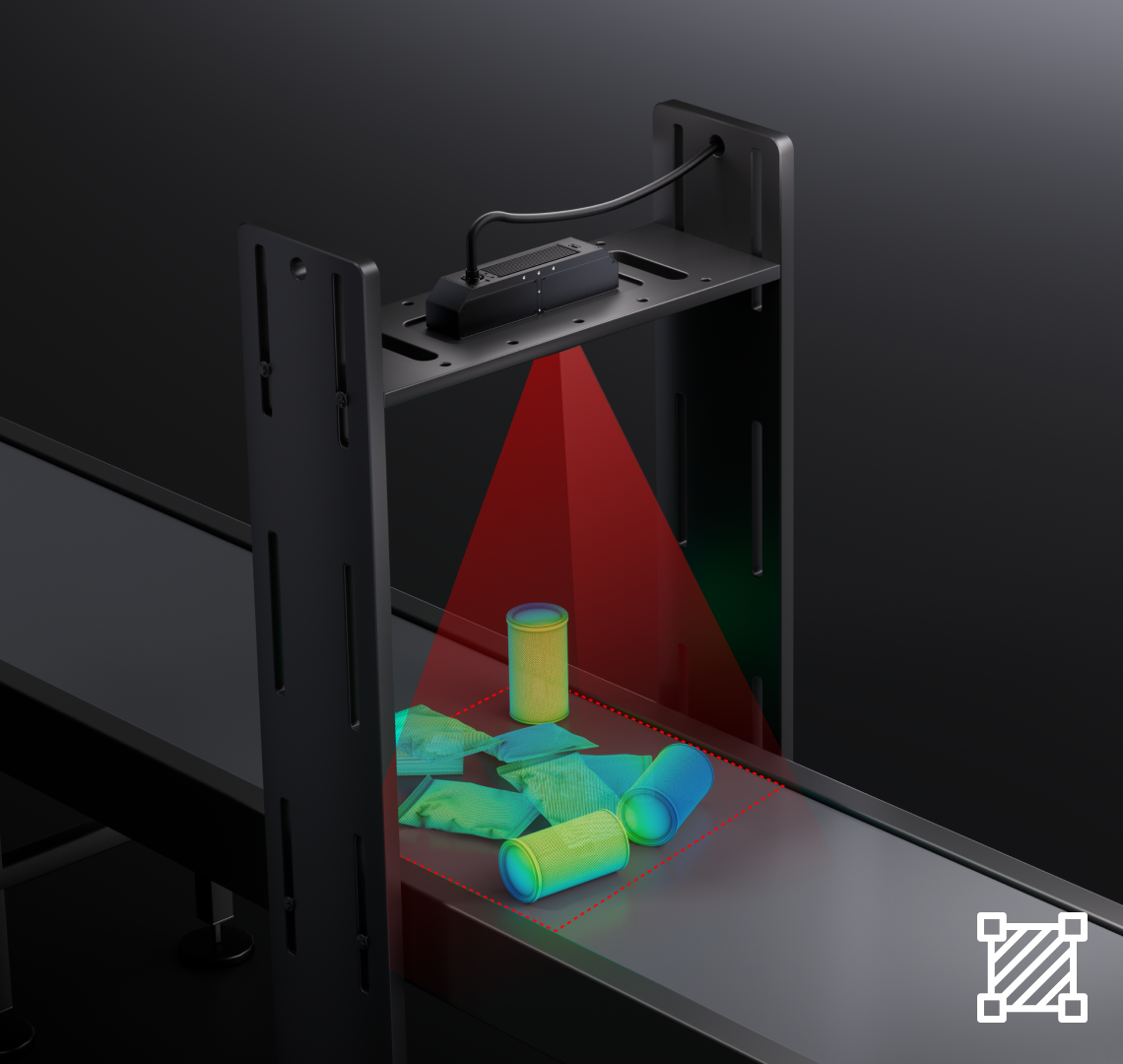

Powered by a high-performance laser, the Surface Pro series supports precise data capture at distances of up to 1400 mm, ideal for fast and detailed 3D scanning of small to medium-sized objects.

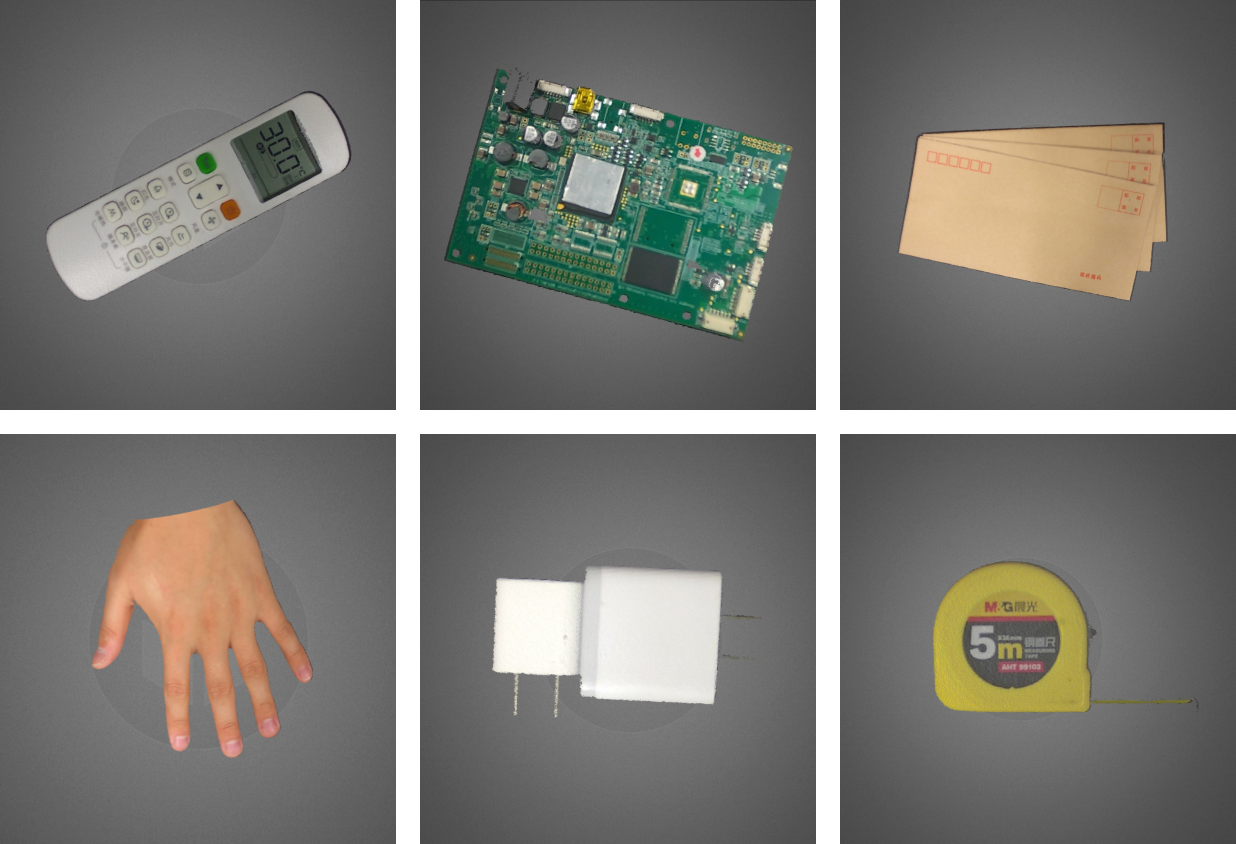

Accurate 3D Data from Complex Surfaces
Generate detailed 3D point cloud data with a depth map resolution of up to 1600 x 1200, showing complete structures and clear boundaries for various materials, including those that are reflective, dark, and complex.

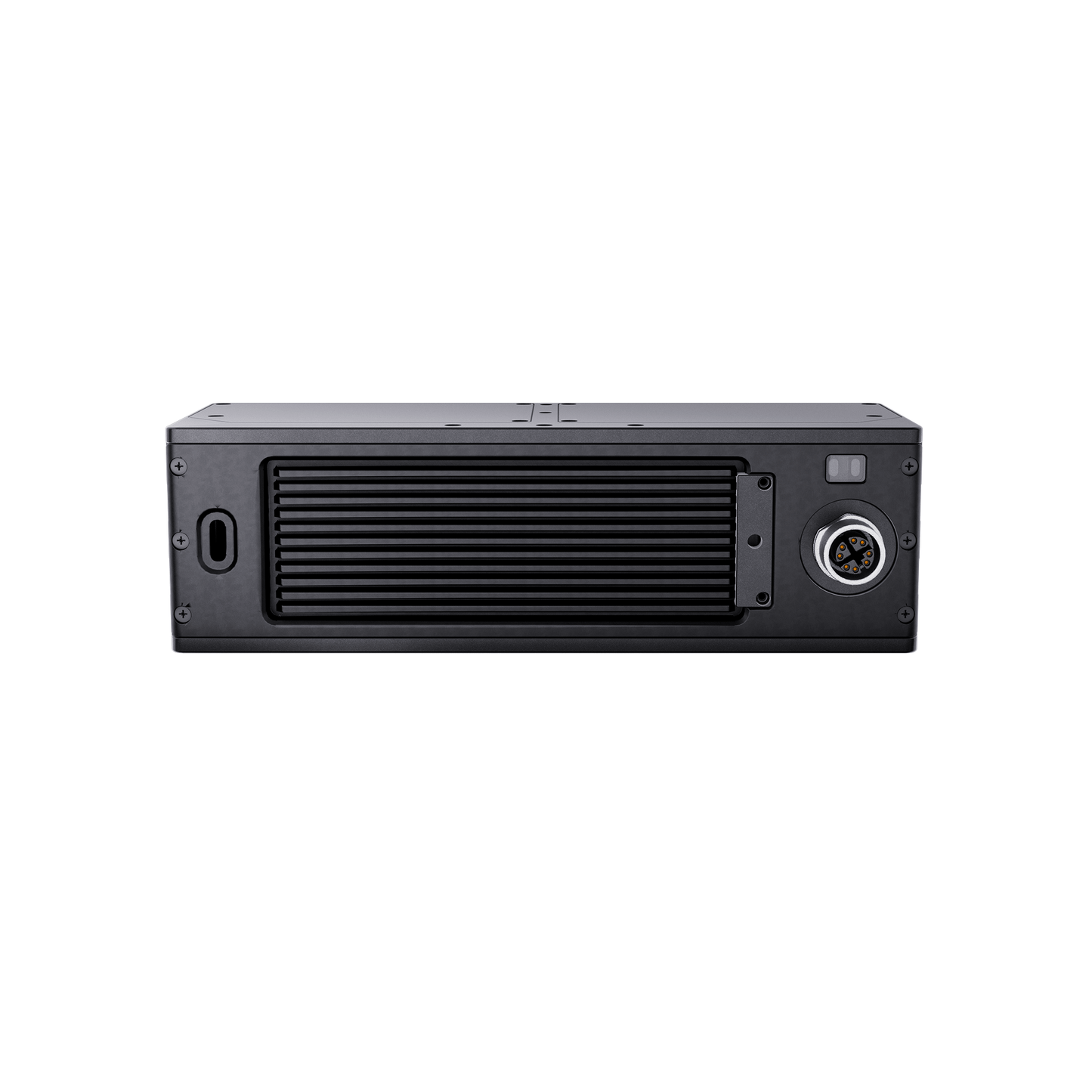

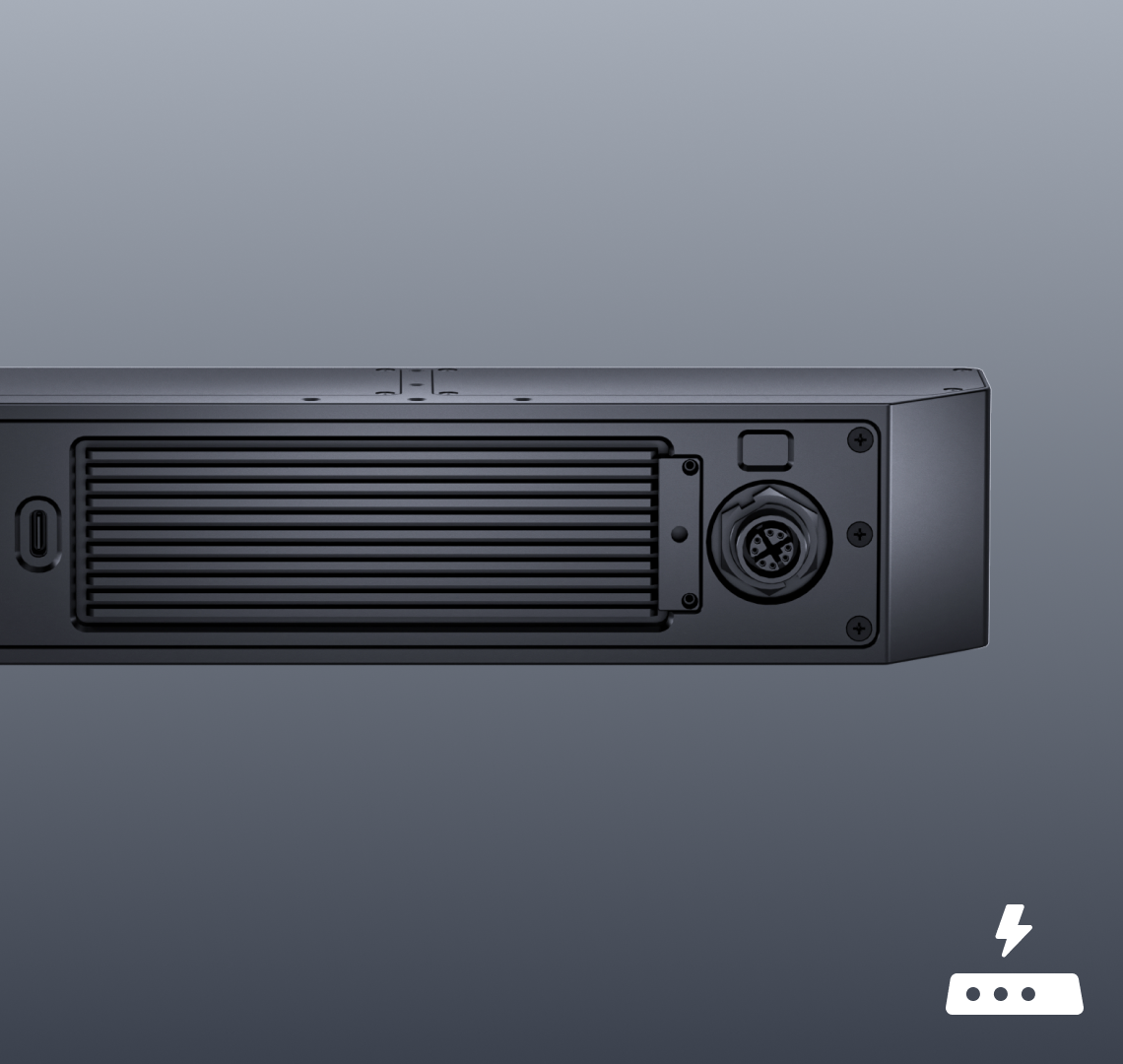

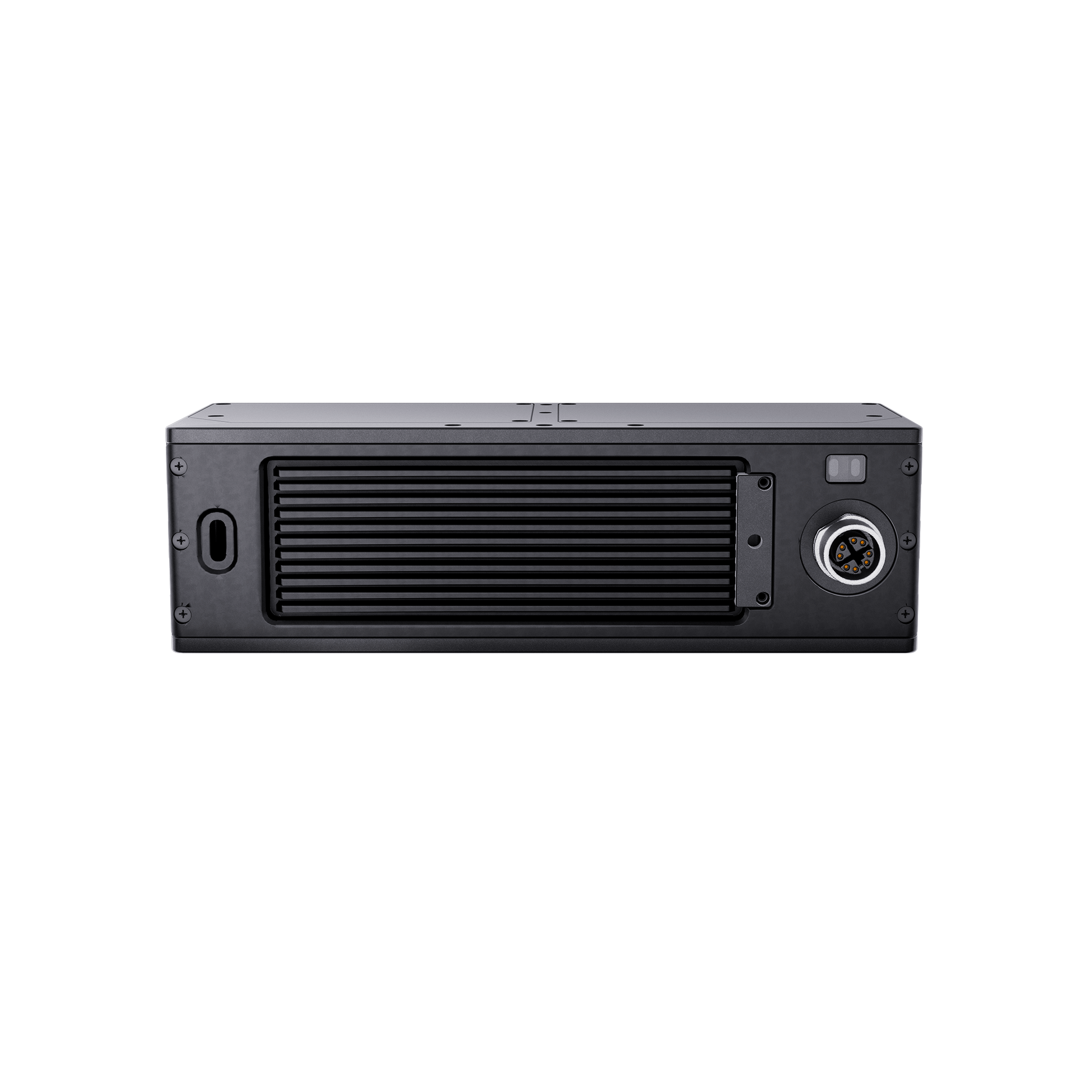

Power & Data in One
With its POE power supply, only a single cable is required for both power and data transmission, making deployment straightforward.
Open, Easy SDKs & Integration
Revopoint Robot offers multi-language, multi-platform SDKs compatible with GenICam and GigE Vision, supporting Halcon and more. It features a user-friendly interface that enables straightforward hardware-to-software adaptation and integration, allowing for the rapid development of customized 3D vision solutions.

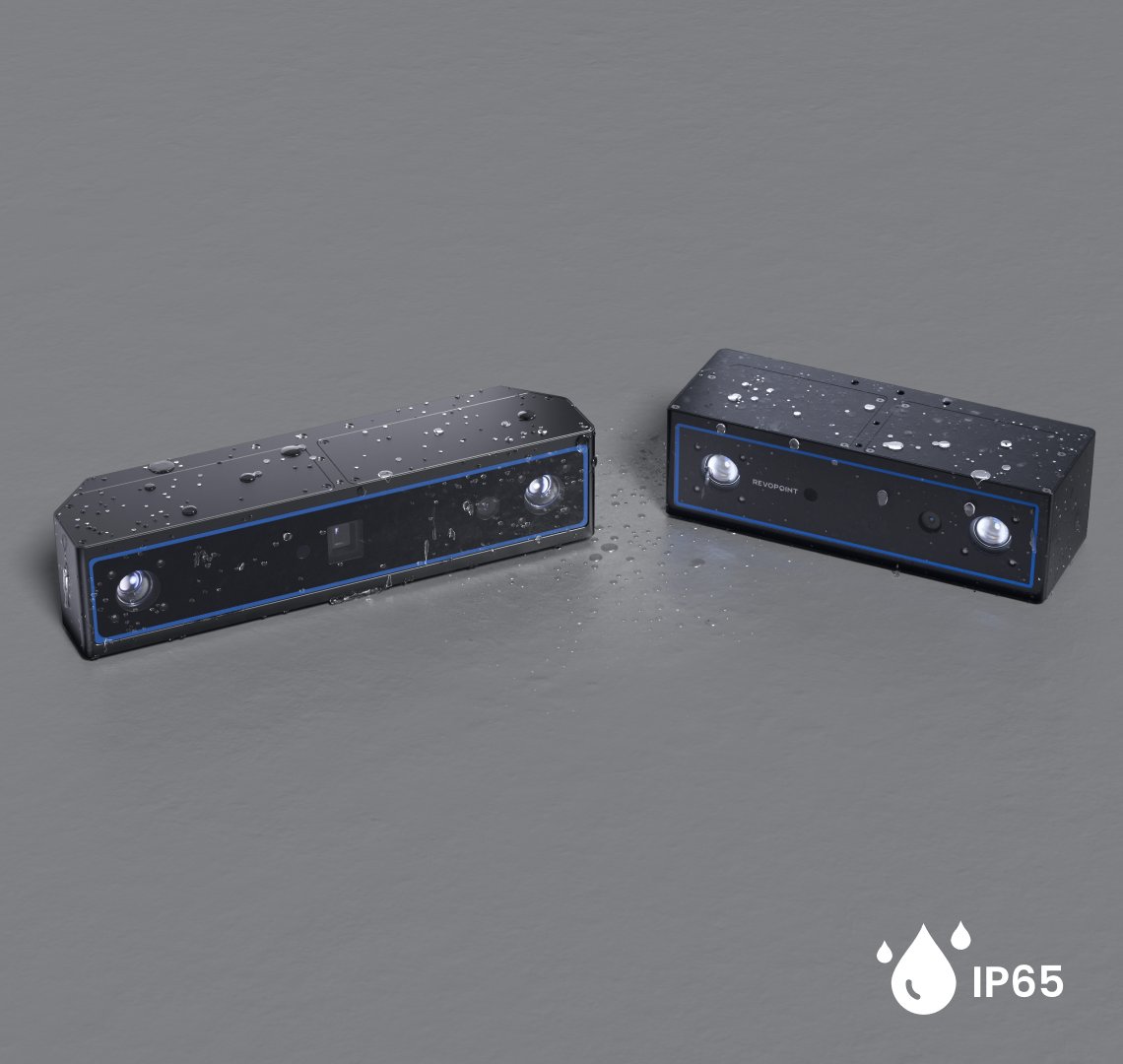

Endurance Engineered
IP65 protection ensures stable operation in high-temperature, humid, and other challenging environments.
Real-Time Visual Positioning
The Surface Pro 100's red light indicator shows the active scanning area in real-time, aiding visual positioning and improving scanning efficiency and accuracy.
High Precision 3D Vision System
Automation Solutions

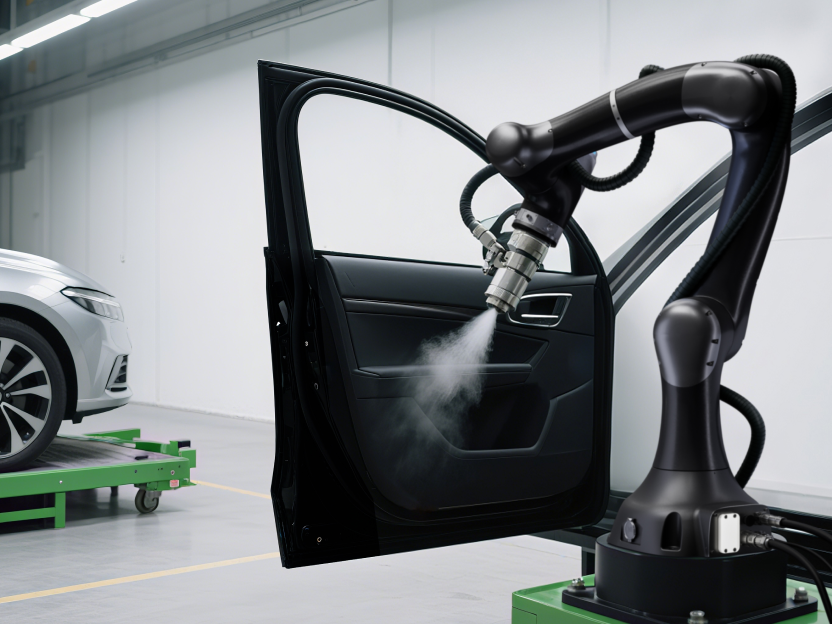

Automotive Manufacturing
The Surface Pro 100 offers micron-level inspection with ±0.05 mm precision for automotive components, accelerates robotic welding by 30%, and supports complete assembly verification, reducing defects in body-in-white (BIW) operations by up to 60%.

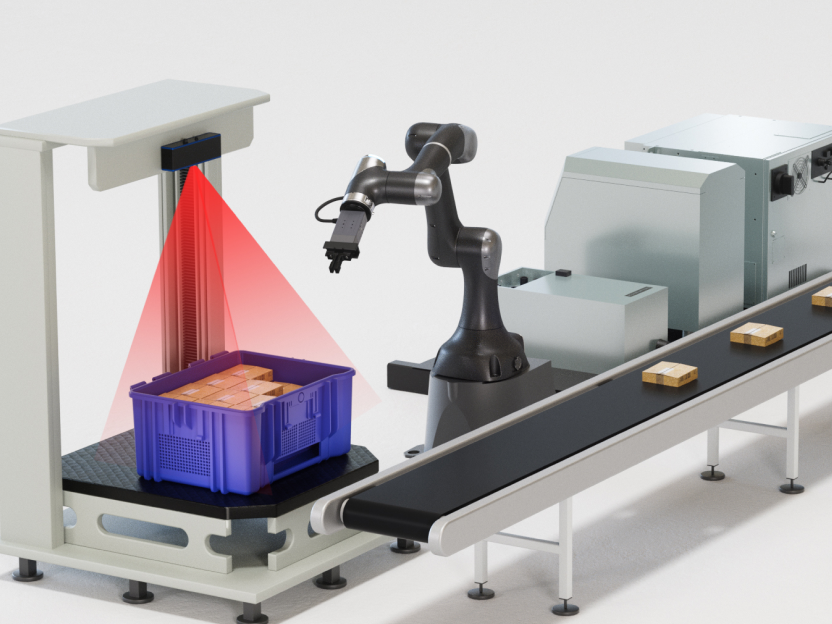

Logistics: Sorting & Palletizing
Achieve sorting and mixed-SKU palletizing of over 2,000 parcels per hour with a 99.5% pick success rate. Maximize labor cost savings through fully automated warehouse operations, including route planning, material picking, and defect or quality inspection.

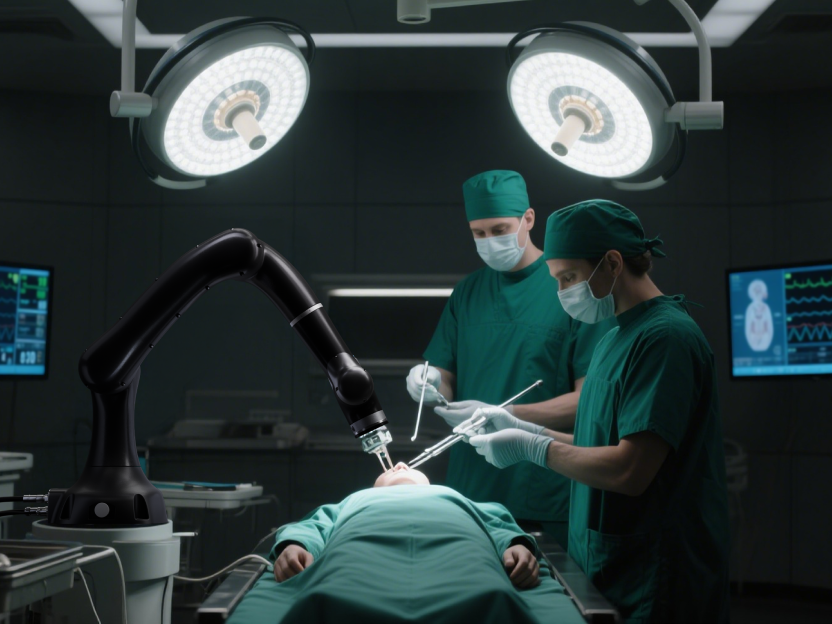

Healthcare
With high precision of ±0.05 mm, the Surface Pro 100 brings 3D vision automation to advanced applications, from surgical navigation to medical device manufacturing.

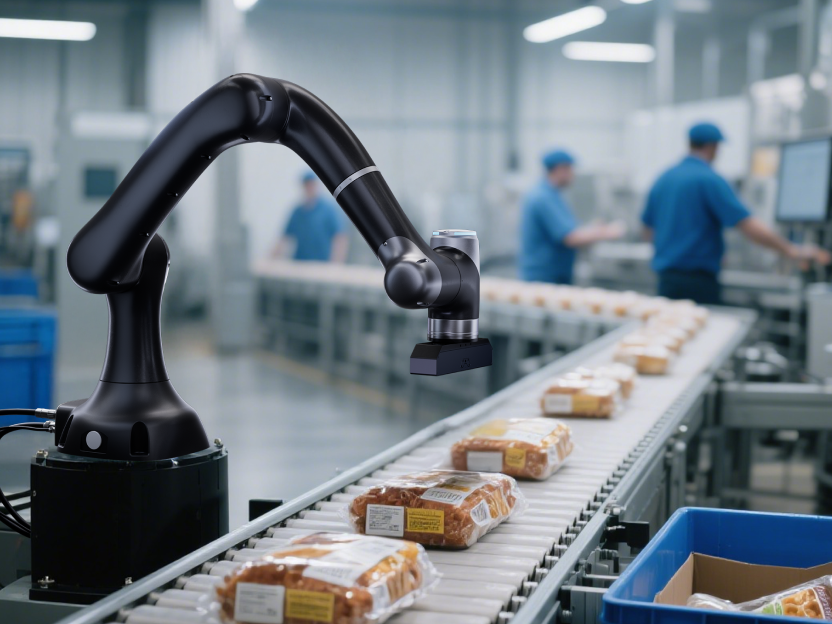

Inspection
Perform real-time detection of PCB micro-defects and food quality deviations at over 200 checks per second, reducing scrap rates by 35% across production lines.
Research & Education
Open SDK compatibility with ROS and MATLAB makes it ideal for robotics R&D and STEM programs, offering industrial-grade 3D vision at academic-friendly pricing.
Top End Effectors

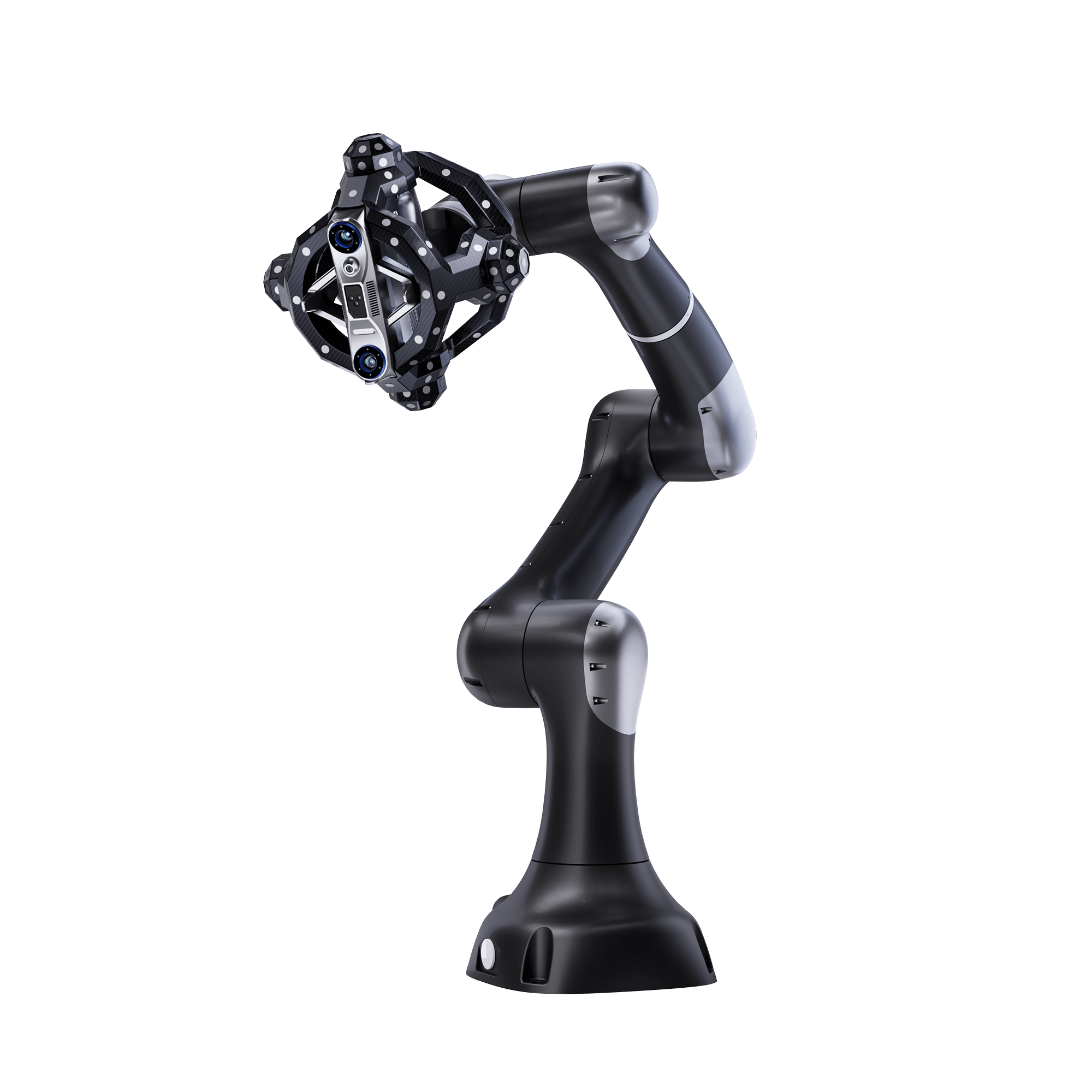

Metrohub - Robot 3D Scanning System, Intelligent Automated Scanning and Inspection
$17,820.00
PEGA Compact Collaborative Electric Gripper
$800.00
EVS Collaborative Electric Vacuum Gripper
$800.00
RG Collaborative Parallel Electric Gripper
$1,200.00

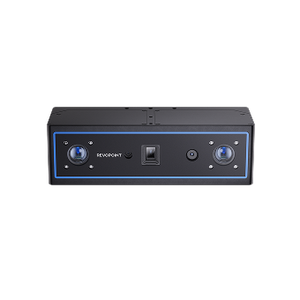

Technical Specifications
|
Product
|
|
|
|
Product Name
|
Surface Pro 50 | Surface Pro 100 |
|
3D Technology
|
Binocular Structured Light
|
|
|
Brightness
|
Class 1 Infrared Laser
|
|
|
Optimal Working Distance (mm)
|
500 ± 250
|
900 ± 500
|
|
Max Working Distance (mm)
|
750
|
1400
|
|
FOV
|
(H49° x V38°)
|
|
|

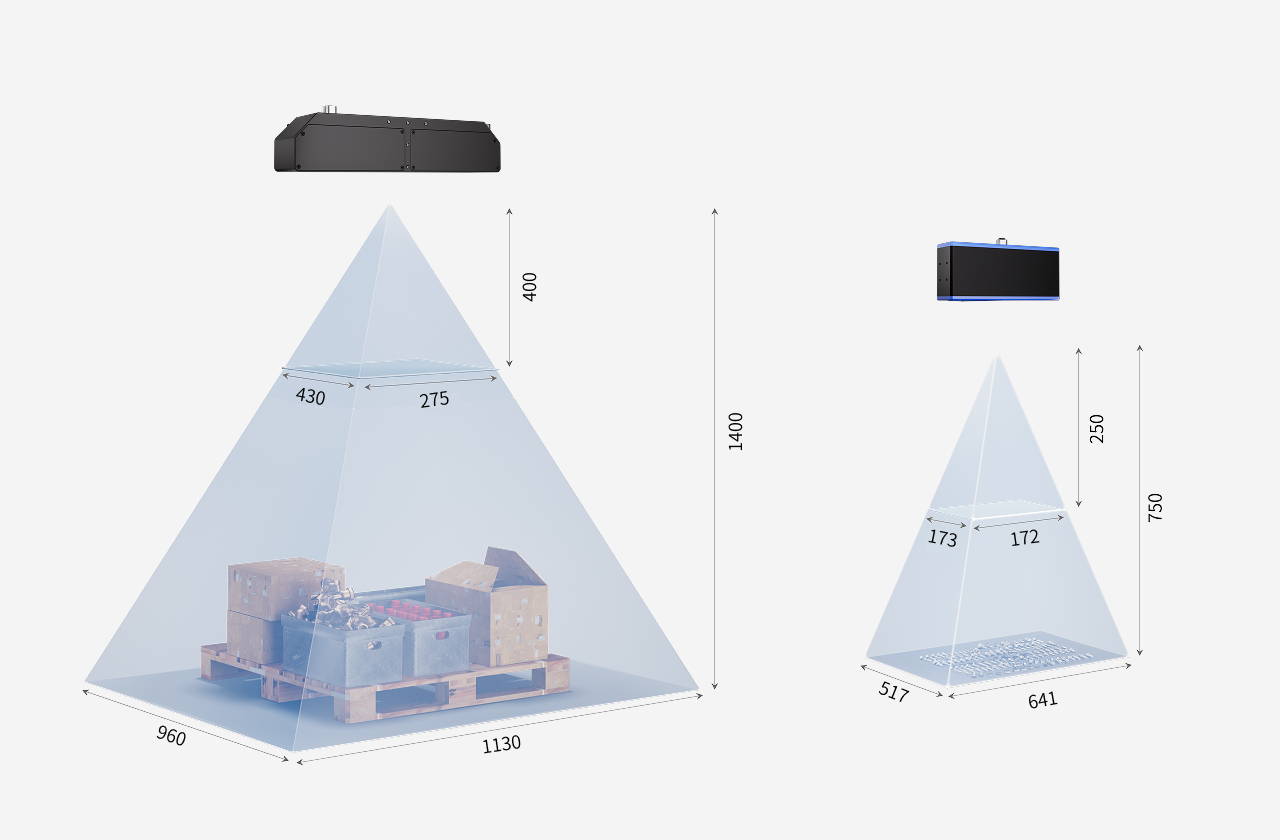

Field of View@Working Distance (mm)
|
173x172@250；470x348@500；641x517@750
|
430x275@400；780x620@900；1130x960@1400
|
|
Spatial Resolution@Working Distance (mm)
|
0.3@500
|
0.5@900
|
|
Point Precision (mm)①
|
±0.05
|
|
|
Absolute Accuracy (mm)
|
±0.1
|
±0.1
|
|
Housing Material
|
Aluminum Alloy
|
|
|
Appearance Size (mm)②
|
165x60x50
|
219×50×50
|
|
Weight (Kg)
|
0.6
|
0.7
|
|
Depth Map Resolution @ Maximum Frame Rate
|
1600x1200@6fps；800x600@12fps
|
|
|
RGB Imaging
|
1920x1080@20fps
|
1600x1200@20fps
|
|
Data Output
|
Color Image + Depth Map
|
|
|
Image Alignment
|
Supports alignment between depth map and color image
|
|
|
Shutter (s)
|
1/200 s to 1/10 s
|
|
|
Gain
|
1x to 16x
|
|
|
Minimum Acquisition Time
|
50ms for a single frame depth map, 50ms for propagation delay time
|
|
|
Power Connector
|
Powered via PoE (IEEE 802.3at, 50-57V, 25.5W)
|
|
|
Data Connector③
|
PoE Gigabit Ethernet port; USB-C 3.0
|
|
|
Power Consumption
|
15W
|
|
|
Usage Environment
|
Indoor only
|
|
|
Operating Temperature
|
-10℃ ~ 45℃
|
|
|
Storage Temperature
|
-20℃ ~ 60℃
|
|
|
Operating Humidity
|
20% ~ 65% without dew condensation
|
|
|
Protection Rating④
|
IP65
|
|
|
SDK Supported Operating Systems
|
Linux(Ubuntu18.04 or better)；Windows 10/11
|
|
|
Notes
|
① Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details.
②③ The precision and accuracy are obtained by standard test method in laboratory standard environment, and the user's specific use environment may affect the accuracy.
④ Product dimensions can be customized according to user requirements.
⑤ Support IEEE 802.3at standard PoE power supply.
⑥ Only for products with pure network interface. Products that need USB3.0 interface do not support IP65. Please pay attention when purchasing.
|
|
